DMP2069UFY4-7

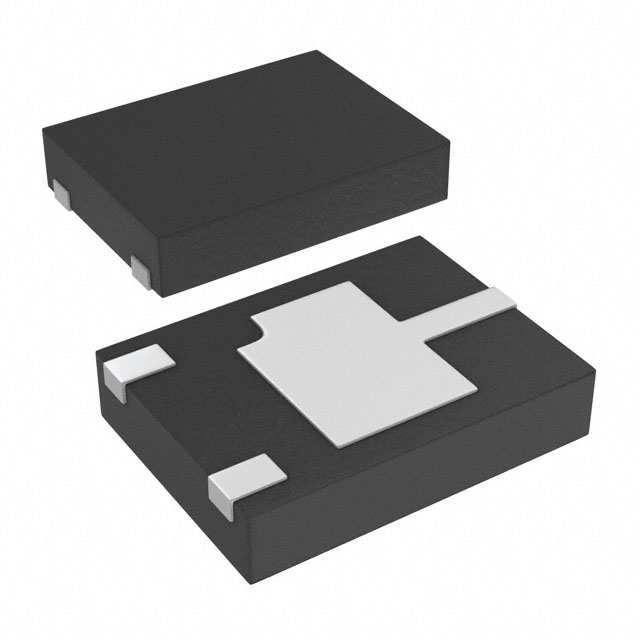

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMP2069UFY4-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMP2069UFY4-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMP2069UFY4-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET P-CH 20V 2.5A 3-DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.064 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMP2069UFY4-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET P-CH 20V 2.5A 3-DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 370481 pcs | Data sheet | DMP2069UFY4 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DFN2015H4-3 | Series | - |
| Rds On (Max) @ Id, Vgs | 54 mOhm @ 2.5A, 4.5V | Power Dissipation (Max) | 530mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 3-XFDFN |
| Other Names | DMP2069UFY4-7DITR DMP2069UFY47 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 214pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 9.1nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 2.5A (Ta) 530mW (Ta) Surface Mount DFN2015H4-3 |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
