DMN6040SVTQ-13

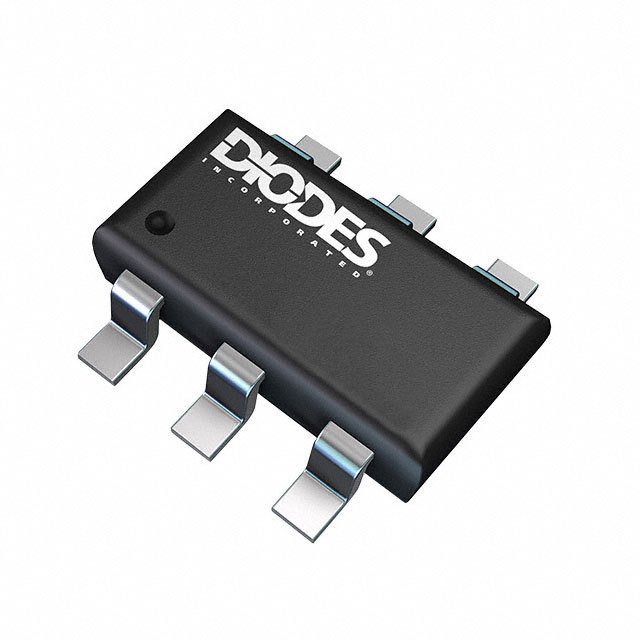

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMN6040SVTQ-13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMN6040SVTQ-13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMN6040SVTQ-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET NCH 60V 5A TSOT26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.077 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMN6040SVTQ-13 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET NCH 60V 5A TSOT26 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 269891 pcs | Data sheet | DMN6040SVTQ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TSOT-26 | Series | Automotive, AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 44 mOhm @ 4.3A, 10V | Power Dissipation (Max) | 1.2W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1287pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 22.4nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 5A (Ta) 1.2W (Ta) Surface Mount TSOT-26 |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
