DMN3730UFB4-7

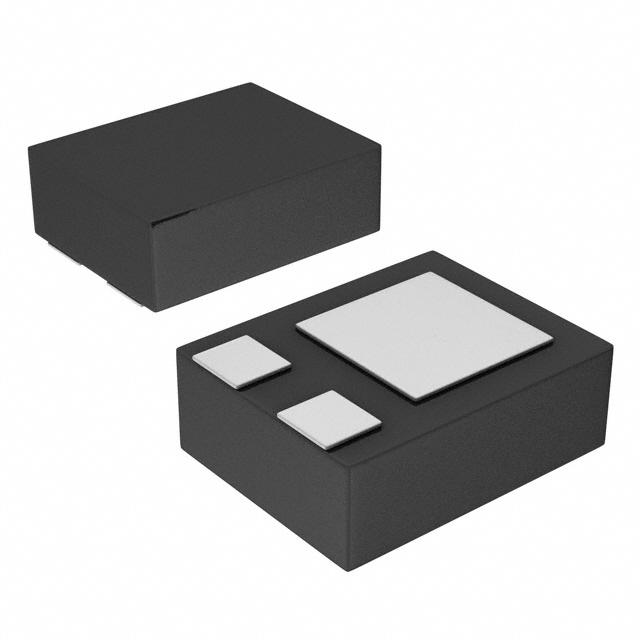

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMN3730UFB4-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMN3730UFB4-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMN3730UFB4-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 30V 750MA DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.268 | $0.234 | $0.18 | $0.133 | $0.107 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DMN3730UFB4-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N-CH 30V 750MA DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199980 pcs | Data sheet | DMN3730UFB4 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | X2-DFN1006-3 | Series | - |
| Rds On (Max) @ Id, Vgs | 460 mOhm @ 200mA, 4.5V | Power Dissipation (Max) | 470mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | 3-XFDFN |
| Other Names | DMN3730UFB4-7CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 64.3pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 1.6nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 750mA (Ta) 470mW (Ta) Surface Mount X2-DFN1006-3 | Current - Continuous Drain (Id) @ 25°C | 750mA (Ta) |
