DMN3016LDN-7

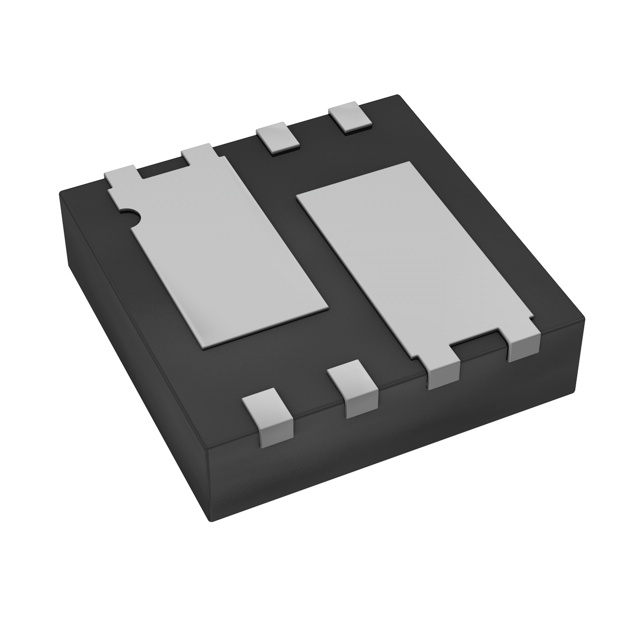

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMN3016LDN-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMN3016LDN-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMN3016LDN-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET 2N-CH 30V 7.3A 8VDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.084 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMN3016LDN-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V 7.3A 8VDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 246022 pcs | Data sheet | DMN3016LDN |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | V-DFN3030-8 (Type J) | Series | - |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 11A, 10V | Power - Max | 1.1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | DMN3016LDN-7DITR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1415pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 25.1nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 7.3A 1.1W Surface Mount V-DFN3030-8 (Type J) |
| Current - Continuous Drain (Id) @ 25°C | 7.3A |
