DMN2026UVT-7

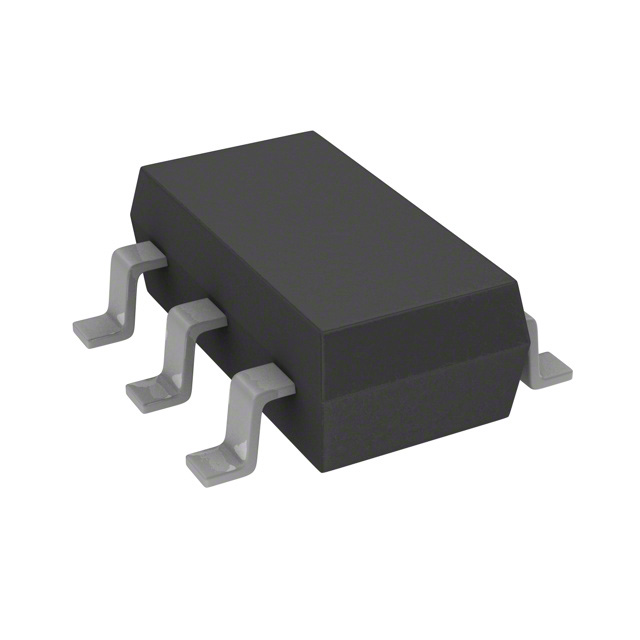

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMN2026UVT-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMN2026UVT-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMN2026UVT-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N-CH 20V 6.2A TSOT-26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.057 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMN2026UVT-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N-CH 20V 6.2A TSOT-26 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 415145 pcs | Data sheet | DMN2026UVT |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±10V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TSOT-26 | Series | - |
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 6.2A, 4.5V | Power Dissipation (Max) | 1.15W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Other Names | DMN2026UVT-7DITR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 887pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 18.4nC @ 8V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 6.2A (Tc) 1.15W (Ta) Surface Mount TSOT-26 | Current - Continuous Drain (Id) @ 25°C | 6.2A (Tc) |
