DMN1250UFEL-7

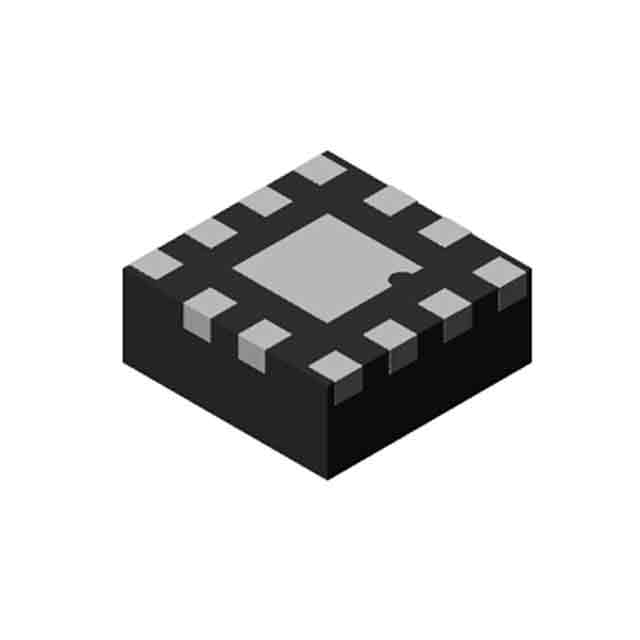

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMN1250UFEL-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMN1250UFEL-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMN1250UFEL-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET BVDSS: 8V 24V U-QFN1515-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.411 | $0.359 | $0.277 | $0.205 | $0.164 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DMN1250UFEL-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET BVDSS: 8V 24V U-QFN1515-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123567 pcs | Data sheet | DMN1250UFEL |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | U-QFN1515-12 | Series | - |
| Rds On (Max) @ Id, Vgs | 450 mOhm @ 200mA, 4.5V | Power - Max | 660mW |
| Packaging | Cut Tape (CT) | Package / Case | 12-UFQFN Exposed Pad |
| Other Names | DMN1250UFEL-7DICT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 190pF @ 6V | Gate Charge (Qg) (Max) @ Vgs | 1.9nC @ 4.5V |
| FET Type | 8 N-Channel, Common Gate, Common Source | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 12V | Detailed Description | Mosfet Array 8 N-Channel, Common Gate, Common Source 12V 2A 660mW Surface Mount U-QFN1515-12 |
| Current - Continuous Drain (Id) @ 25°C | 2A |
