DMC21D1UDA-7B

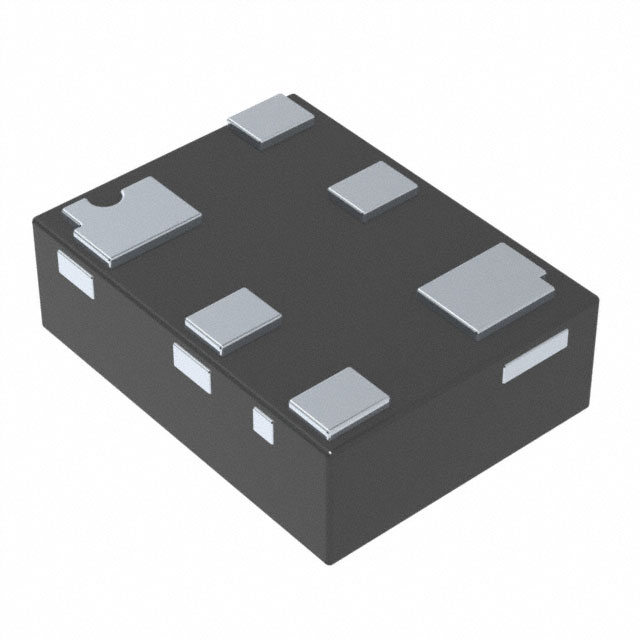

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMC21D1UDA-7B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMC21D1UDA-7B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMC21D1UDA-7B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N/P-CH 20V X2DFN0806-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.04 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMC21D1UDA-7B | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V X2DFN0806-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 489251 pcs | Data sheet | DMC21D1UDA |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X2-DFN0806-6 | Series | - |
| Rds On (Max) @ Id, Vgs | 990 mOhm @ 100mA, 4.5V, 1.9 Ohm @ 100mA, 4.5V | Power - Max | 300mW |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, No Lead |
| Other Names | DMC21D1UDA-7B-ND | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 31pF @ 15V, 28.5pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 0.41nC @ 4.5V, 0.4nC @ 4.5V |
| FET Type | N and P-Channel | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | Mosfet Array N and P-Channel 20V 455mA (Ta), 328mA (Ta) 300mW Surface Mount X2-DFN0806-6 |
| Current - Continuous Drain (Id) @ 25°C | 455mA (Ta), 328mA (Ta) |
