DMC2004LPK-7

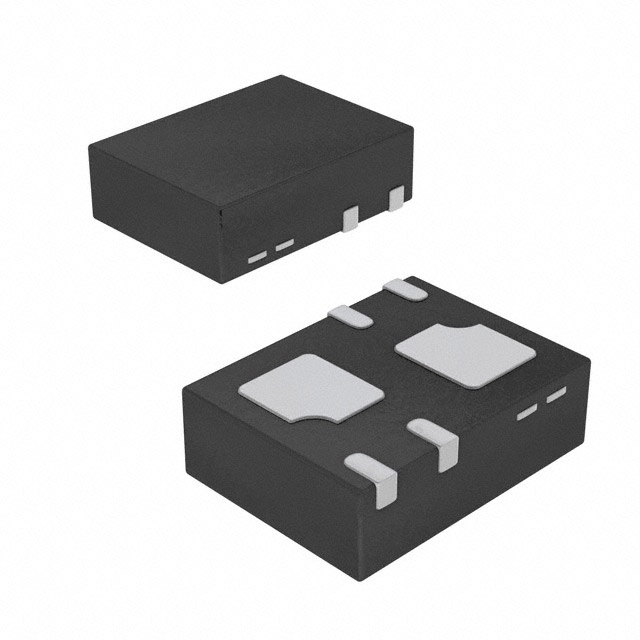

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMC2004LPK-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMC2004LPK-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMC2004LPK-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET N/P-CH 20V 6-DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.057 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DMC2004LPK-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V 6-DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 403114 pcs | Data sheet | DMC2004LPK |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | X1-DFN1612-6 | Series | - |
| Rds On (Max) @ Id, Vgs | 550 mOhm @ 540mA, 4.5V | Power - Max | 500mW |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, No Lead |
| Other Names | DMC2004LPK-7-ND DMC2004LPK-7DITR |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 16V | Gate Charge (Qg) (Max) @ Vgs | - |
| FET Type | N and P-Channel | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | Mosfet Array N and P-Channel 20V 750mA, 600mA 500mW Surface Mount X1-DFN1612-6 |
| Current - Continuous Drain (Id) @ 25°C | 750mA, 600mA |
