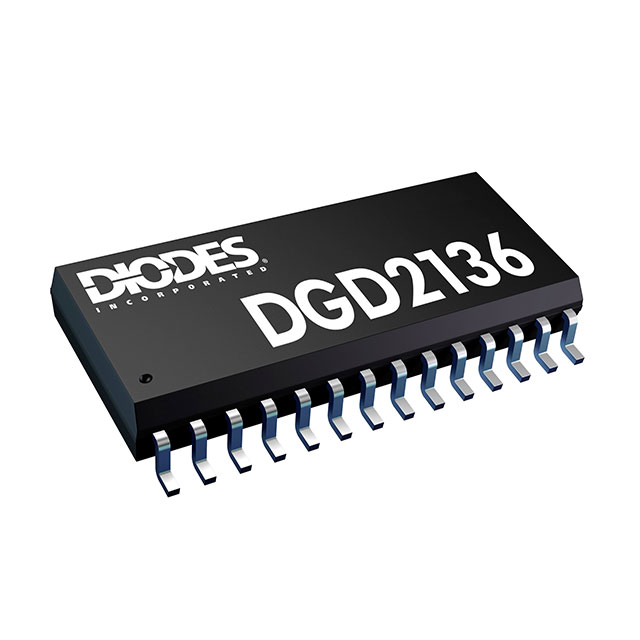

DGD2136S28-13
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DGD2136S28-13 with confidence from Components-World.HK, 1 Year Warranty
Dowload DGD2136S28-13 Details in PDFSee Product Specifications for product details.
Buy DGD2136S28-13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DGD2136S28-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | HV GATE DRIVER SO-28 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | |||
|---|---|---|---|---|---|
| $0.569 | $0.54 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DGD2136S28-13 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | HV GATE DRIVER SO-28 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57630 pcs | Data sheet | DGD2136S28 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 20 V |
| Supplier Device Package | 28-SO | Series | - |
| Rise / Fall Time (Typ) | 90ns, 35ns | Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) | Other Names | DGD2136S28-13-ND DGD2136S28-13DITR |
| Operating Temperature | -40°C ~ 150°C (TJ) | Number of Drivers | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 8 Weeks | Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600V | Gate Type | IGBT, N-Channel MOSFET |
| Driven Configuration | Half-Bridge | Detailed Description | Half-Bridge Gate Driver IC Inverting 28-SO |
| Current - Peak Output (Source, Sink) | 200mA, 350mA | Channel Type | 3-Phase |
