AP7346D-1815FS6-7

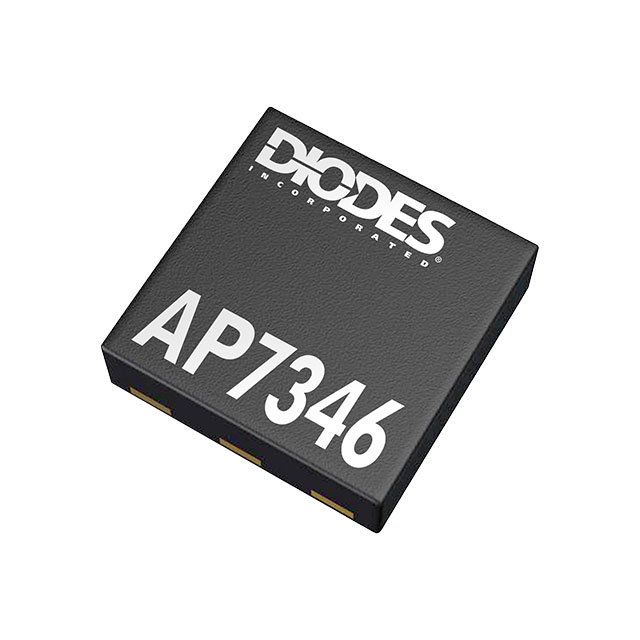

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AP7346D-1815FS6-7 with confidence from Components-World.HK, 1 Year Warranty
Dowload AP7346D-1815FS6-7 Details in PDFSee Product Specifications for product details.
Buy AP7346D-1815FS6-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AP7346D-1815FS6-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC REG LIN 1.5V/1.8V X2DFN1212-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | ||
|---|---|---|---|---|---|
| $0.081 | $0.078 | $0.075 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AP7346D-1815FS6-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC REG LIN 1.5V/1.8V X2DFN1212-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 306594 pcs | Data sheet | AP7346 Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.44V @ 120mA, 0.39V @ 120mA |
| Voltage - Output (Min/Fixed) | 1.5V, 1.8V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 5.25V | Supplier Device Package | X2-DFN1212-6 |
| Series | - | Protection Features | Over Current |
| Packaging | Tape & Reel (TR) | Package / Case | 6-XFDFN Exposed Pad |
| PSRR | 75dB (1kHz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | AP7346D-1815FS6-7DITR |
| Operating Temperature | -40°C ~ 85°C | Number of Regulators | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Linear Voltage Regulator IC Positive Fixed 2 Output 1.5V, 1.8V 130mA, 130mA X2-DFN1212-6 |
| Current - Quiescent (Iq) | 100µA | Current - Output | 130mA, 130mA |
| Control Features | Enable |
