Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > AP3125AEV1

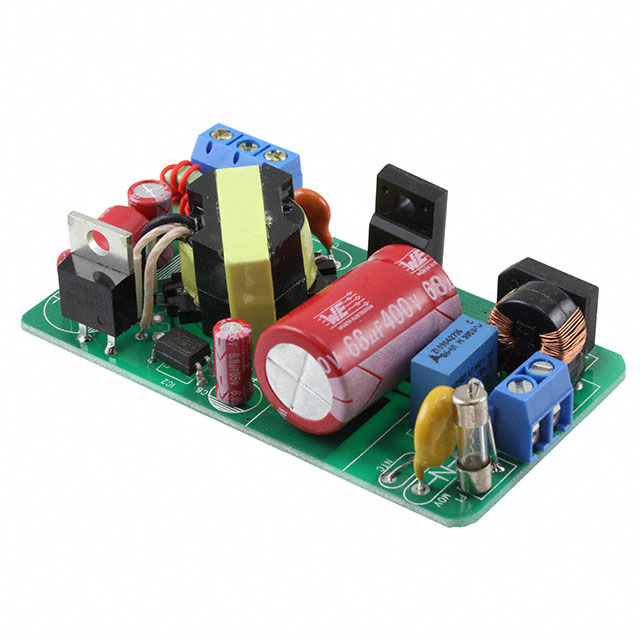

AP3125AEV1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AP3125AEV1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AP3125AEV1
Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR AP3125A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2299 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.165

Product parameter
Data sheet

Product parameter

Part Number	AP3125AEV1	Manufacturer	Diodes Incorporated
Description	EVAL BOARD FOR AP3125A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2299 pcs	Data sheet	AP3125(A,V,L,R)
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	-	Utilized IC / Part	AP3125A
Supplied Contents	Board(s)	Series	-
Regulator Topology	Flyback	Outputs and Type	1, Isolated
Other Names	AP3125AEV1DI	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Main Purpose	AC/DC, Primary Side
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	65kHz
Detailed Description	AP3125A - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board	Current - Output	-
Board Type	Fully Populated
