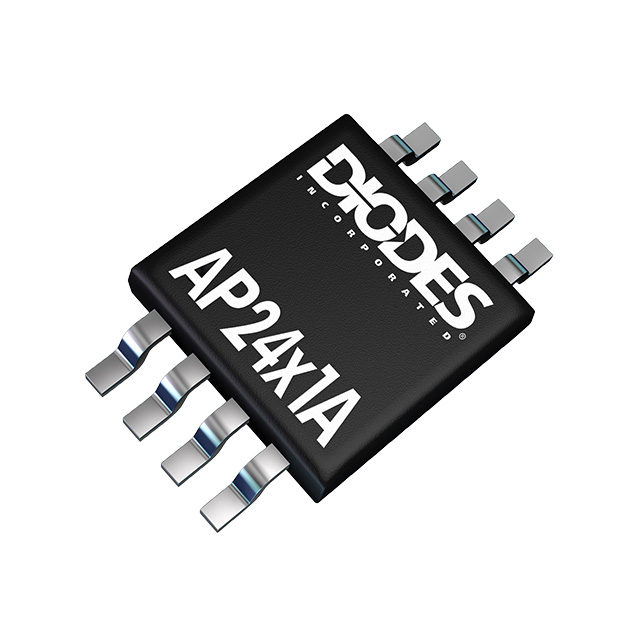

AP2401AMP-13
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AP2401AMP-13 with confidence from Components-World.HK, 1 Year Warranty
Dowload AP2401AMP-13 Details in PDFSee Product Specifications for product details.
Buy AP2401AMP-13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AP2401AMP-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | USB POWER SWITCH 8MSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.18 | $0.153 | $0.114 | $0.09 | $0.069 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AP2401AMP-13 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | USB POWER SWITCH 8MSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 312590 pcs | Data sheet | AP23-25x1A AnnouncementAP2401A, AP2411A |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 2.7 V ~ 5.5 V | Switch Type | USB Switch |
| Supplier Device Package | 8-MSOP-EP | Series | - |
| Rds On (Typ) | 70 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Cut Tape (CT) | Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Output Type | P-Channel | Output Configuration | High Side |
| Other Names | AP2401AMP-13DICT | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | On/Off |
| Input Type | Non-Inverting | Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | Current - Output (Max) | 2A |
