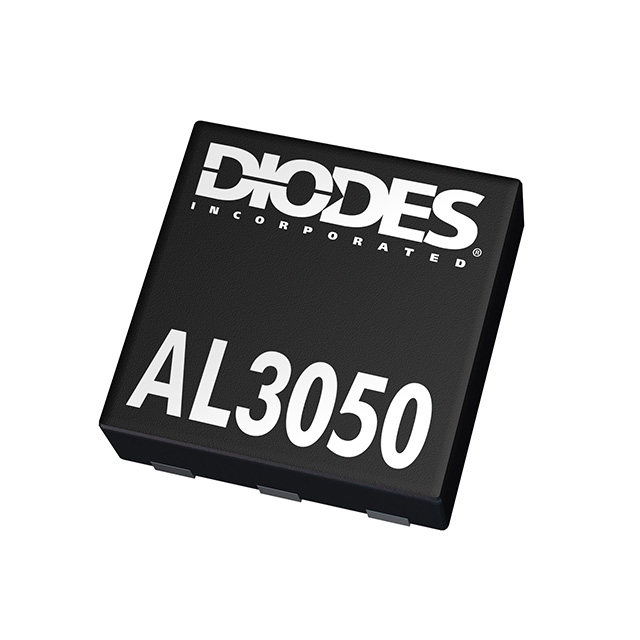

AL3050FDC-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AL3050FDC-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AL3050FDC-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AL3050FDC-7 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LED DRVR REG PWM U-DFN2020-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.061 | $0.057 | $0.053 | $0.051 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AL3050FDC-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | IC LED DRVR REG PWM U-DFN2020-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 430127 pcs | Data sheet | AL3050 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V | Voltage - Output | 30V |
| Type | DC DC Regulator | Topology | Step-Up (Boost) |
| Supplier Device Package | U-DFN2020-6 (Type S) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 6-UDFN Exposed Pad |
| Other Names | AL3050FDC-7-ND AL3050FDC-7DITR |
Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 750kHz | Dimming | PWM |
| Detailed Description | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 40mA U-DFN2020-6 (Type S) | Current - Output / Channel | 40mA |
| Applications | Backlight |
