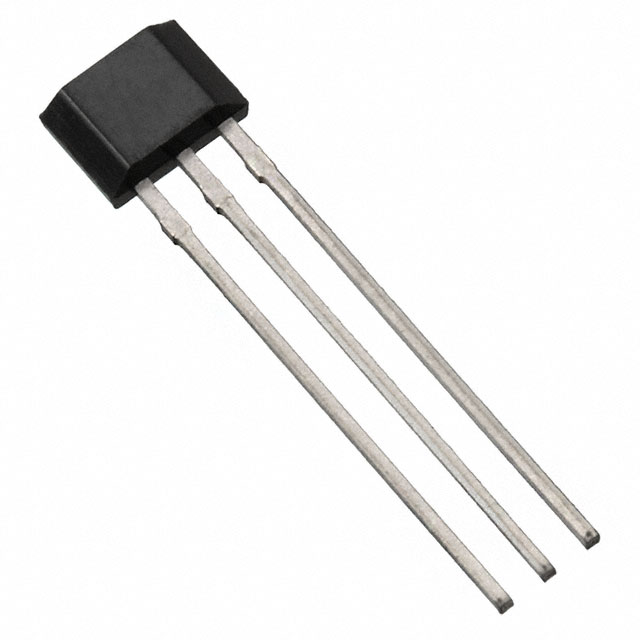

AH3777-P-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH3777-P-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH3777-P-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH3777-P-B |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MAGNETIC SWITCH LATCH 3SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $0.288 | $0.274 | $0.239 | $0.21 | $0.174 | |
| 100 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.148 | $0.129 | $0.113 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH3777-P-B | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MAGNETIC SWITCH LATCH 3SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 209111 pcs | Data sheet | AH3777 |
| Category | Sensors, Transducers | Voltage - Supply | 3 V ~ 28 V |
| Test Condition | -40°C ~ 125°C | Technology | Hall Effect |
| Supplier Device Package | 3-SIP | Series | - |
| Sensing Range | 17mT Trip, -17mT Release | Polarization | South Pole |
| Packaging | Bulk | Package / Case | 3-SIP Module |
| Output Type | Open Drain | Other Names | AH3777-P-BDI |
| Operating Temperature | -40°C ~ 125°C (TA) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Latch | Features | Temperature Compensated |
| Detailed Description | Digital Switch Latch Open Drain Hall Effect 3-SIP | Current - Supply (Max) | 4mA |
| Current - Output (Max) | 60mA |
