Home > Products > Integrated Circuits (ICs) > Logic - Gates and Inverters > 74LV132AT14-13

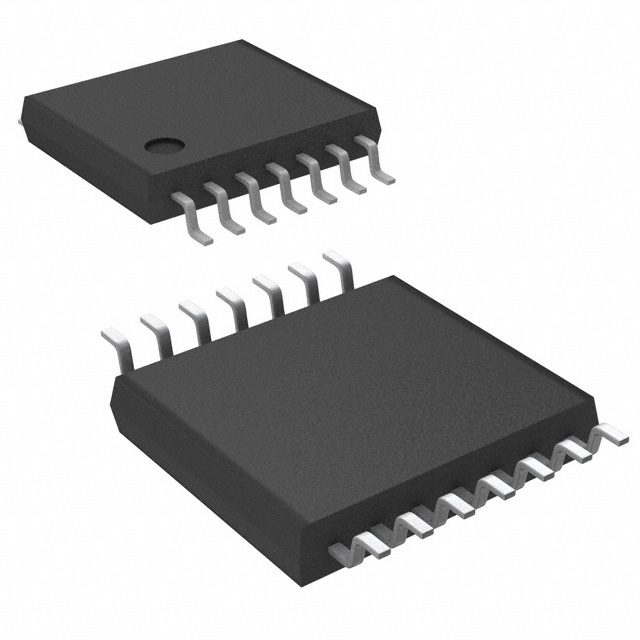

74LV132AT14-13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 74LV132AT14-13 with confidence from Components-World.HK, 1 Year Warranty

Dowload 74LV132AT14-13 Details in PDF

Request a Quote

Part Number	74LV132AT14-13
Manufacturer	Diodes Incorporated
Description	IC GATE NAND SCHMITT 4CH 14TSSOP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 475255 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.143	$0.115	$0.078	$0.059	$0.044

Product parameter
Data sheet

Product parameter

Part Number	74LV132AT14-13	Manufacturer	Diodes Incorporated
Description	IC GATE NAND SCHMITT 4CH 14TSSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	475255 pcs	Data sheet	74LV132A
Category	Integrated Circuits (ICs)	Voltage - Supply	2 V ~ 5.5 V
Supplier Device Package	14-TSSOP	Series	74LV
Packaging	Cut Tape (CT)	Package / Case	14-TSSOP (0.173", 4.40mm Width)
Other Names	74LV132AT14-13DICT	Operating Temperature	-40°C ~ 125°C
Number of Inputs	2	Number of Circuits	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Propagation Delay @ V, Max CL	9.7ns @ 5V, 50pF	Logic Type	NAND Gate
Logic Level - Low	0.75 V ~ 1.5 V	Logic Level - High	1.75 V ~ 3.5 V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Schmitt Trigger
Detailed Description	NAND Gate IC 4 Channel Schmitt Trigger 14-TSSOP	Current - Quiescent (Max)	20µA
Current - Output High, Low	12mA, 12mA
