Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > 1N5397S-T

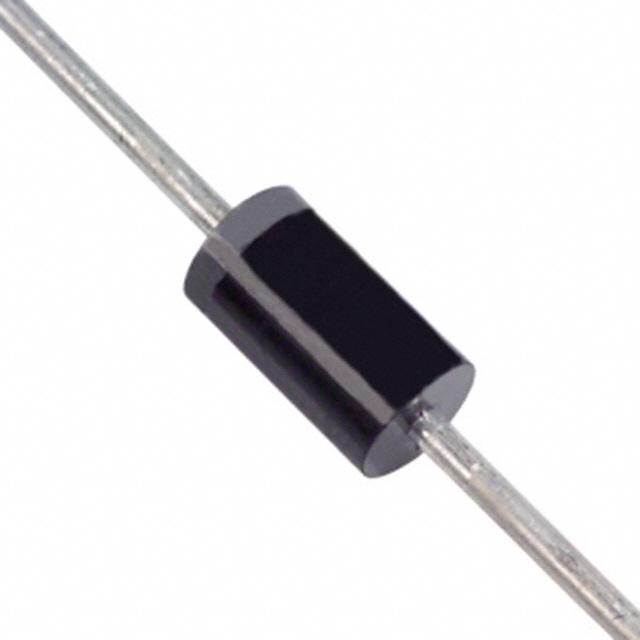

1N5397S-T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5397S-T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N5397S-T
Manufacturer	Diodes Incorporated
Description	DIODE GEN PURP 600V 1.5A DO41
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4440 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	1N5397S-T	Manufacturer	Diodes Incorporated
Description	DIODE GEN PURP 600V 1.5A DO41	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4440 pcs	Data sheet	1N539x/S
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Voltage - DC Reverse (Vr) (Max)	600V	Supplier Device Package	DO-41
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	DO-204AL, DO-41, Axial
Operating Temperature - Junction	-65°C ~ 150°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 600V 1.5A Through Hole DO-41
Current - Reverse Leakage @ Vr	5µA @ 600V	Current - Average Rectified (Io)	1.5A
Capacitance @ Vr, F	20pF @ 4V, 1MHz	Base Part Number	1N5397
