5977783602F

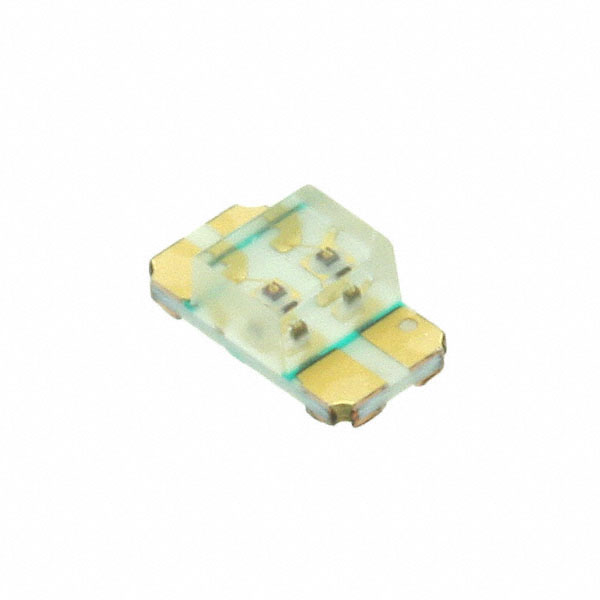

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5977783602F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5977783602F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5977783602F |
|---|---|
| Manufacturer | Dialight |
| Description | LED BLUE/RED 1206 SMD BOTTOM ENT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.708 | $0.627 | $0.465 | $0.404 | $0.364 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.324 | $0.278 | $0.263 | $0.253 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5977783602F | Manufacturer | Dialight |
|---|---|---|---|
| Description | LED BLUE/RED 1206 SMD BOTTOM ENT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84703 pcs | Data sheet | 597-7783-60xF DrawingLED SMD Selector Guide |
| Category | Optoelectronics | Wavelength - Peak | 468nm Blue, 639nm Red |
| Wavelength - Dominant | 470nm Blue, 631nm Red | Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2V Red |
| Viewing Angle | 130° | Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.60mm W | Series | 597 |
| Packaging | Bulk | Package / Case | 1206 (3216 Metric) |
| Other Names | 350-3613 597-7783-602F 597-7783-602F-ND |
Mounting Type | Surface Mount, Bottom Entry |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 45mcd Blue, 45mcd Red |
| Manufacturer Standard Lead Time | 10 Weeks | Lens Transparency | - |
| Lens Style/Size | Rectangle with Flat Top, 1.50mm x 1.60mm | Lens Color | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.10mm |
| Features | - | Detailed Description | Blue, Red 470nm Blue, 631nm Red LED Indication - Discrete 3.3V Blue, 2V Red 1206 (3216 Metric) |
| Current - Test | 20mA Blue, 20mA Red | Configuration | Independent |
| Color | Blue, Red |
