Home > Products > Resistors > Chip Resistor - Surface Mount > TNPW2010294RBEEF

TNPW2010294RBEEF

TNPW2010294RBEEF

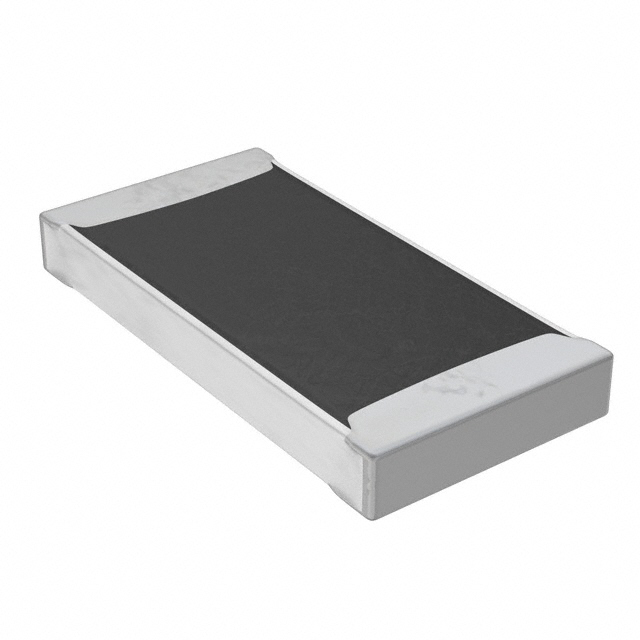

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TNPW2010294RBEEF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TNPW2010294RBEEF
Manufacturer	Dale / Vishay
Description	RES 294 OHM 0.1% 2/5W 2010
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4155 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	TNPW2010294RBEEF	Manufacturer	Dale / Vishay
Description	RES 294 OHM 0.1% 2/5W 2010	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4155 pcs	Data sheet	SMD Resistor Product Overview TNPW e3 Series Datasheet
Category	Resistors	Tolerance	±0.1%
Temperature Coefficient	±25ppm/°C	Supplier Device Package	2010
Size / Dimension	0.197" L x 0.098" W (5.00mm x 2.50mm)	Series	TNPW e3
Resistance	294 Ohms	Power (Watts)	0.4W, 2/5W
Packaging	Tape & Reel (TR)	Package / Case	2010 (5025 Metric)
Other Names	TNPW2010 294R 0.1% T9 E02 E3	Operating Temperature	-55°C ~ 155°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.030" (0.75mm)
Features	Moisture Resistant	Failure Rate	-
Detailed Description	294 Ohms ±0.1% 0.4W, 2/5W Chip Resistor 2010 (5025 Metric) Moisture Resistant Thin Film	Composition	Thin Film
