TNPU080514K7BZEN00

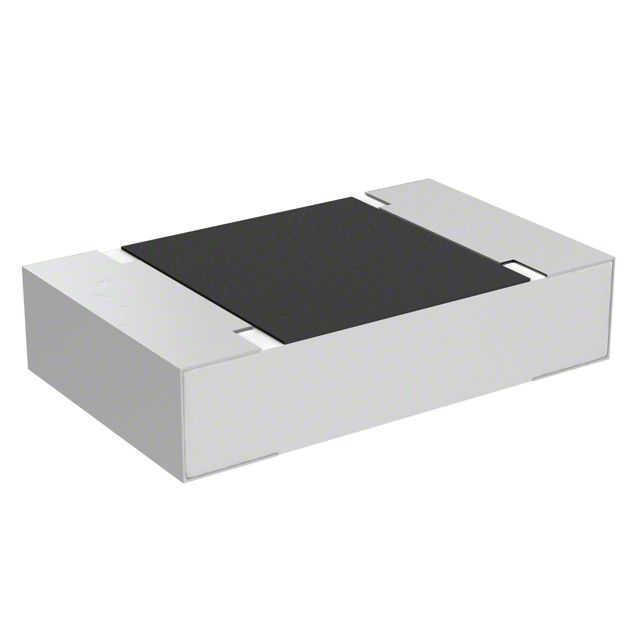

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TNPU080514K7BZEN00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TNPU080514K7BZEN00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TNPU080514K7BZEN00 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | RES SMD 14.7K OHM 0.1% 1/8W 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.367 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TNPU080514K7BZEN00 | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | RES SMD 14.7K OHM 0.1% 1/8W 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104739 pcs | Data sheet | TNPU_e3 Series |
| Category | Resistors | Tolerance | ±0.1% |
| Temperature Coefficient | ±5ppm/°C | Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Series | TNPU |
| Resistance | 14.7 kOhms | Power (Watts) | 0.125W, 1/8W |
| Packaging | Tape & Reel (TR) | Package / Case | 0805 (2012 Metric) |
| Operating Temperature | -55°C ~ 125°C | Number of Terminations | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.022" (0.55mm) |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Failure Rate | - |
| Detailed Description | 14.7 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film | Composition | Thin Film |
