Home > Products > Resistors > Chip Resistor - Surface Mount > TNPU0603100KBZEN00

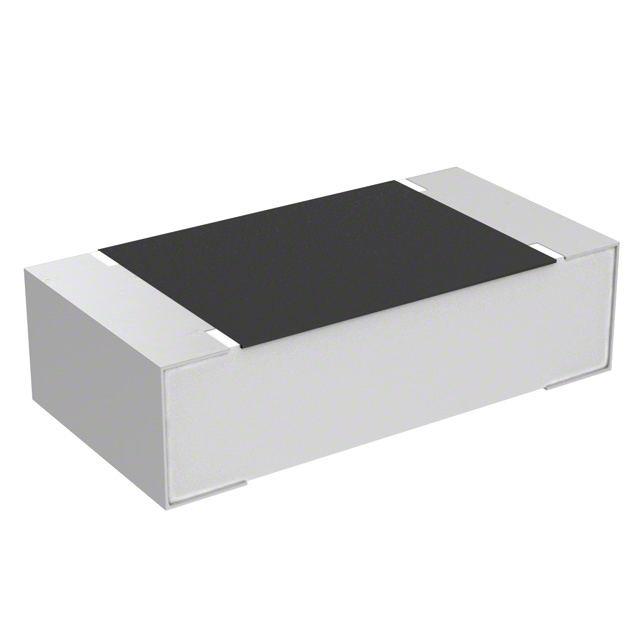

TNPU0603100KBZEN00

TNPU0603100KBZEN00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TNPU0603100KBZEN00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TNPU0603100KBZEN00
Manufacturer	Dale / Vishay
Description	RES SMD 100K OHM 0.1% 1/10W 0603
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 61510 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.362

Product parameter
Data sheet

Product parameter

Part Number	TNPU0603100KBZEN00	Manufacturer	Dale / Vishay
Description	RES SMD 100K OHM 0.1% 1/10W 0603	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61510 pcs	Data sheet	TNPU_e3 Series
Category	Resistors	Tolerance	±0.1%
Temperature Coefficient	±5ppm/°C	Supplier Device Package	0603
Size / Dimension	0.063" L x 0.033" W (1.60mm x 0.85mm)	Series	TNPU
Resistance	100 kOhms	Power (Watts)	0.1W, 1/10W
Packaging	Tape & Reel (TR)	Package / Case	0603 (1608 Metric)
Other Names	TNP100KBATR TNP100KBATR-ND TNPU100KBATR	Operating Temperature	-55°C ~ 125°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.022" (0.55mm)	Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Failure Rate	-	Detailed Description	100 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Composition	Thin Film
