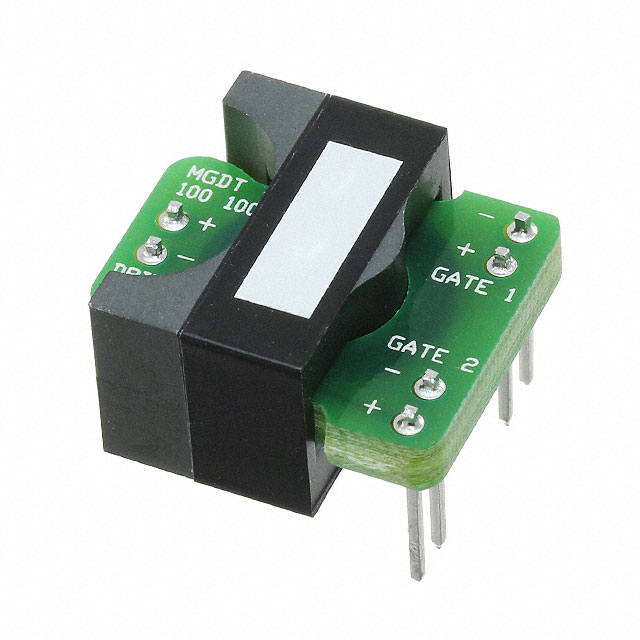

MGDT100100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MGDT100100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MGDT100100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MGDT100100 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | PLANAR GATE-DRIVE XFMR, 1 : 1 : |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 64 pcs | |
|---|---|---|---|---|---|
| $4.376 | $3.232 | $2.984 | $2.884 | ||
| 128 pcs | 256 pcs | 512 pcs | 1024 pcs | ||
| $2.805 | $2.765 | $2.735 | $2.685 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MGDT100100 | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | PLANAR GATE-DRIVE XFMR, 1 : 1 : | Lead Free Status / RoHS Status | |
| Quantity Available | 13011 pcs | Data sheet | MGDT Series Datasheet |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1:1 |
| Transformer Type | Gate Drive | Size / Dimension | 0.810" L x 0.725" W (20.57mm x 18.42mm) |
| Series | - | Other Names | 541-4220 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 16 Weeks |
| Inductance | 240µH | Height - Seated (Max) | 0.450" (11.43mm) |
| Energy Time (E.T.) | - |
