IMC1812ES470J

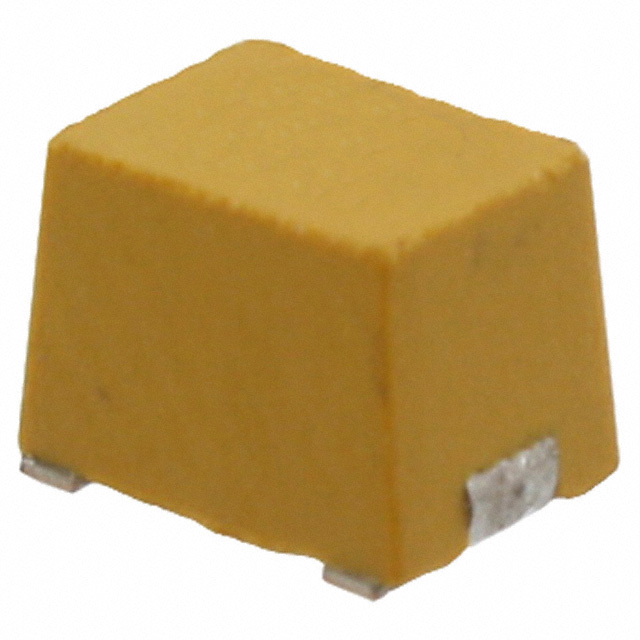

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IMC1812ES470J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IMC1812ES470J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IMC1812ES470J |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 47UH 140MA 5 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.141 | $0.136 | $0.132 | $0.128 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IMC1812ES470J | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | FIXED IND 47UH 140MA 5 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 188411 pcs | Data sheet | IMC1812 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±5% | Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Shielding | Unshielded |
| Series | IMC-1812 | Ratings | - |
| Q @ Freq | 50 @ 2.52MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 1812 (4532 Metric) | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Iron Powder | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 2.52MHz | Inductance | 47µH |
| Height - Seated (Max) | 0.134" (3.40mm) | Frequency - Self Resonant | 10MHz |
| Detailed Description | 47µH Unshielded Wirewound Inductor 140mA 5 Ohm Max 1812 (4532 Metric) | DC Resistance (DCR) | 5 Ohm Max |
| Current Rating | 140mA | Current - Saturation | - |
