IMC0805ER3N9S01

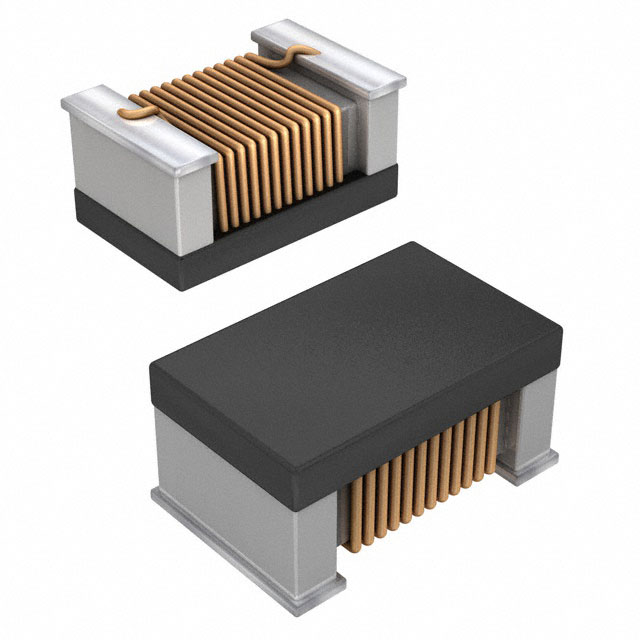

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IMC0805ER3N9S01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IMC0805ER3N9S01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IMC0805ER3N9S01 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 3.9NH 600MA 60 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | ||
|---|---|---|---|---|---|
| $0.045 | $0.042 | $0.04 | |||
| 10000 pcs | 50000 pcs | 100000 pcs | |||
| $0.039 | $0.036 | $0.035 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IMC0805ER3N9S01 | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | FIXED IND 3.9NH 600MA 60 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 663155 pcs | Data sheet | IMC0805-01 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±0.3nH | Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Shielding | Unshielded |
| Series | IMC-0805-01 | Ratings | - |
| Q @ Freq | 60 @ 1GHz | Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ceramic | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 250MHz |
| Inductance | 3.9nH | Height - Seated (Max) | 0.055" (1.40mm) |
| Frequency - Self Resonant | 6GHz | Detailed Description | 3.9nH Unshielded Wirewound Inductor 600mA 60 mOhm Max 0805 (2012 Metric) |
| DC Resistance (DCR) | 60 mOhm Max | Current Rating | 600mA |
| Current - Saturation | - |
