IM04EB220K

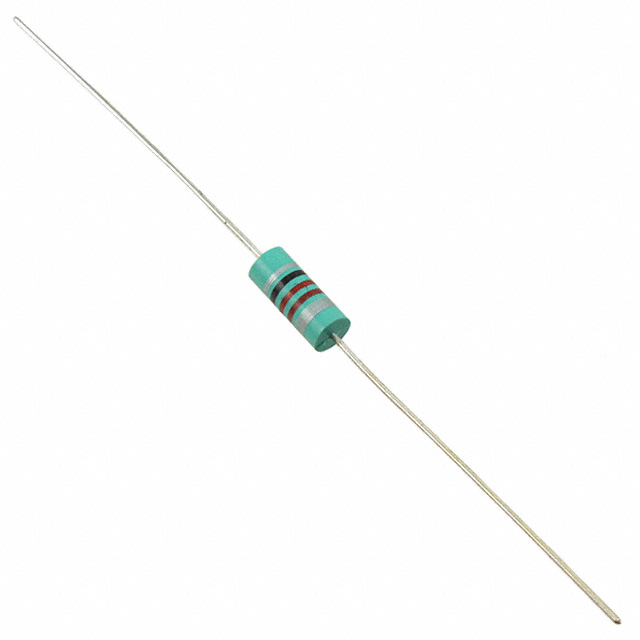

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IM04EB220K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IM04EB220K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IM04EB220K |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 22UH 175MA 2.5 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | IM04EB220K | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | FIXED IND 22UH 175MA 2.5 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5880 pcs | Data sheet | IM Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±10% | Supplier Device Package | Axial |
| Size / Dimension | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | Shielding | Unshielded |
| Series | IM | Ratings | - |
| Q @ Freq | 75 @ 2.5MHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | 541-1512 |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 2.5MHz |
| Inductance | 22µH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 30MHz | Detailed Description | 22µH Unshielded Molded Inductor 175mA 2.5 Ohm Max Axial |
| DC Resistance (DCR) | 2.5 Ohm Max | Current Rating | 175mA |
| Current - Saturation | - |
