IHLP2525CZER4R7M8A

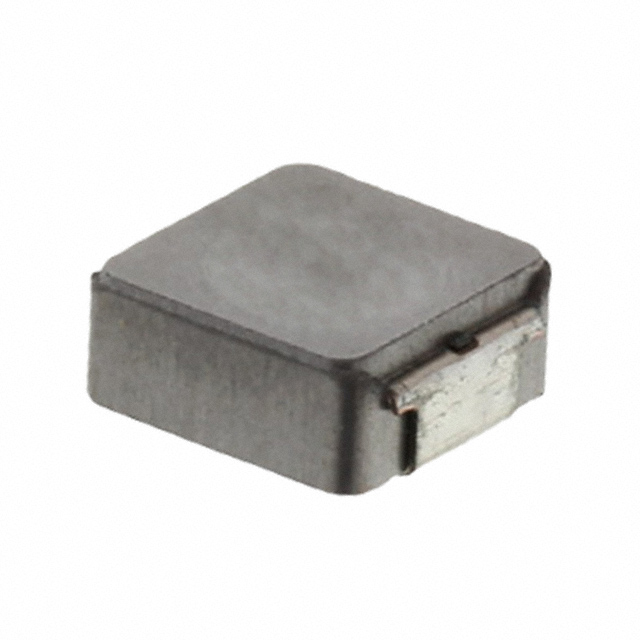

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IHLP2525CZER4R7M8A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IHLP2525CZER4R7M8A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IHLP2525CZER4R7M8A |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 4.7UH 5.6A 38.4 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.91 | $0.84 | $0.588 | $0.476 | $0.434 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IHLP2525CZER4R7M8A | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | FIXED IND 4.7UH 5.6A 38.4 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78791 pcs | Data sheet | Inductor Selector GuideIHLP-2525CZ-8A DataSheet |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | Shielding | Shielded |
| Series | IHLP-2525CZ-8A | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 541-2261-6 |
| Operating Temperature | -55°C ~ 180°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 4.7µH | Height - Seated (Max) | 0.118" (3.00mm) |
| Frequency - Self Resonant | 25.5MHz | Detailed Description | 4.7µH Shielded Molded Inductor 5.6A 38.4 mOhm Max Nonstandard |
| DC Resistance (DCR) | 38.4 mOhm Max | Current Rating | 5.6A |
| Current - Saturation | 5.6A |
