IHLM2525CZER1R5M01

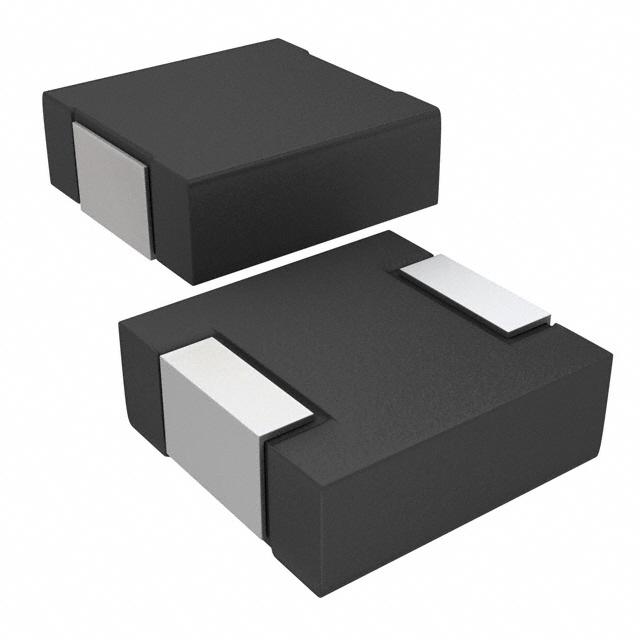

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IHLM2525CZER1R5M01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IHLM2525CZER1R5M01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IHLM2525CZER1R5M01 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 1.5UH 9A 15 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.618 | $0.571 | $0.399 | $0.323 | $0.295 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | IHLM2525CZER1R5M01 | Manufacturer | Dale / Vishay |
|---|---|---|---|
| Description | FIXED IND 1.5UH 9A 15 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71775 pcs | Data sheet | IHLM2525CZ-01 Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | Shielding | Shielded |
| Series | IHLM-2525CZ-01 | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 541-4331-1 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 1.5µH | Height - Seated (Max) | 0.118" (3.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 1.5µH Shielded Inductor 9A 15 mOhm Max Nonstandard |
| DC Resistance (DCR) | 15 mOhm Max | Current Rating | 9A |
| Current - Saturation | 18A |
