Home > Products > RF/IF and RFID > RF Transceiver Modules > CYBLE-214009-00

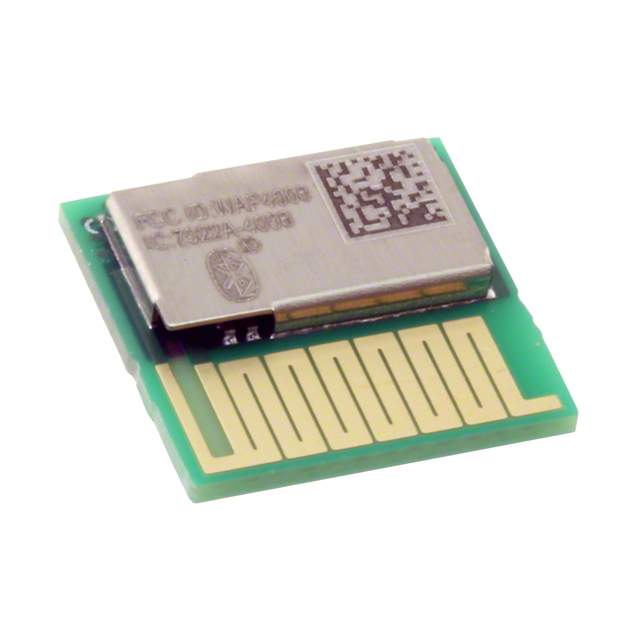

CYBLE-214009-00

CYBLE-214009-00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CYBLE-214009-00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CYBLE-214009-00
Manufacturer	Cypress Semiconductor
Description	RF TXRX MOD BLUETOOTH TRACE ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 11037 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$5.277	$4.775	$4.398	$4.021
	$3.769	$3.518	$3.342

Product parameter
Data sheet

Product parameter

Part Number	CYBLE-214009-00	Manufacturer	Cypress Semiconductor
Description	RF TXRX MOD BLUETOOTH TRACE ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11037 pcs	Data sheet	CYBLE-214009-00
Category	RF/IF and RFID	Voltage - Supply	1.7 V ~ 5.5 V
Utilized IC / Part	-	Series	EZ-BLE™ PSoC®
Serial Interfaces	I²C, I²S, SPI, UART	Sensitivity	-91dBm
RF Family/Standard	Bluetooth	Protocol	Bluetooth v4.1
Power - Output	3dBm	Packaging	Bulk
Package / Case	Module	Other Names	428-3809
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	-
Memory Size	-	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	2.4GHz
Data Rate	1Mbps	Current - Transmitting	15.6mA
Current - Receiving	16.4mA	Antenna Type	Integrated, Trace
