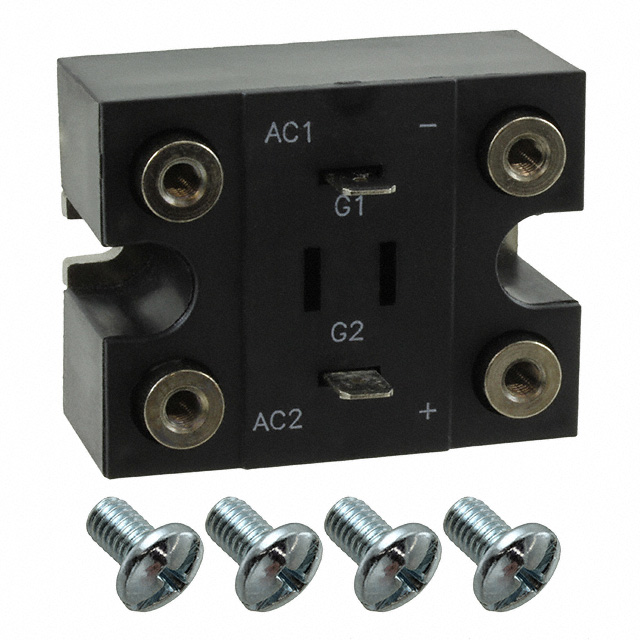

M5010015F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M5010015F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M5010015F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M5010015F |
|---|---|
| Manufacturer | Crydom |
| Description | MODULE POWER 100A 1200V SCR CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $61.042 | $58.173 | $55.499 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | M5010015F | Manufacturer | Crydom |
|---|---|---|---|
| Description | MODULE POWER 100A 1200V SCR CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 661 pcs | Data sheet | M50 SeriesM50 Series, Circuit 1,2,4,5,6 & 7 DrawingSolid State Power Switching Brochure |
| Category | Discrete Semiconductor Products | Voltage - Off State | 1.2kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3V | Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Series | - | Packaging | Bulk |
| Package / Case | Module | Other Names | CC2244 M5010015F-ND |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module | Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 60Hz |
| Current - Gate Trigger (Igt) (Max) | 150mA |
