Home > Products > Discrete Semiconductor Products > Thyristors - SCRs - Modules > F1857SD1200

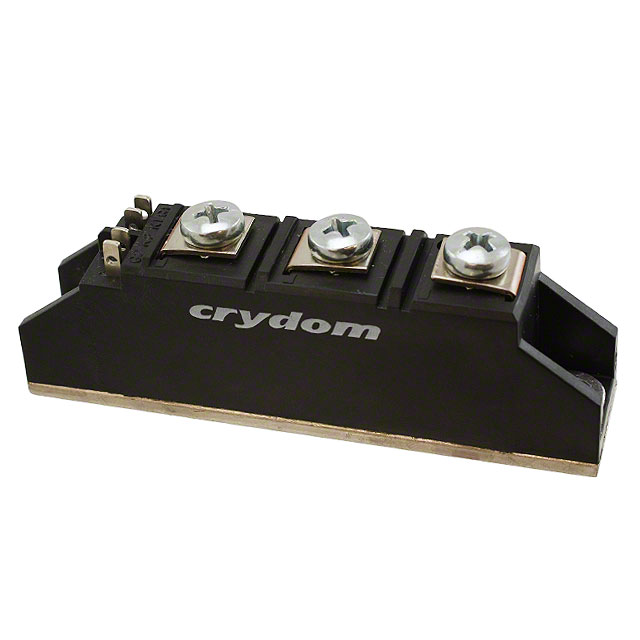

F1857SD1200

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F1857SD1200 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	F1857SD1200
Manufacturer	Crydom
Description	MODULE SCR/DIODE 55A 480VAC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 781 pcs
Reference Price (In US Dollars)	5 pcs
Reference Price (In US Dollars)	$45.559

Product parameter
Data sheet

Product parameter

Part Number	F1857SD1200	Manufacturer	Crydom
Description	MODULE SCR/DIODE 55A 480VAC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	781 pcs	Data sheet	F18 SD, SDK Series Drawing Solid State Power Switching Brochure F18 Series
Category	Discrete Semiconductor Products	Voltage - Off State	1.2kV
Voltage - Gate Trigger (Vgt) (Max)	3V	Structure	Series Connection - All SCRs
Series	-	Packaging	Bulk
Package / Case	Module	Other Names	CC1917 F1857SD1200-ND
Operating Temperature	-40°C ~ 125°C (TJ)	Number of SCRs, Diodes	2 SCRs
Mounting Type	Chassis Mount	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	SCR Module 1.2kV Series Connection - All SCRs Chassis Mount Module	Current - Non Rep. Surge 50, 60Hz (Itsm)	1500A @ 60Hz
Current - Gate Trigger (Igt) (Max)	150mA
