Home > Products > Discrete Semiconductor Products > Diodes - Bridge Rectifiers > EFG15F

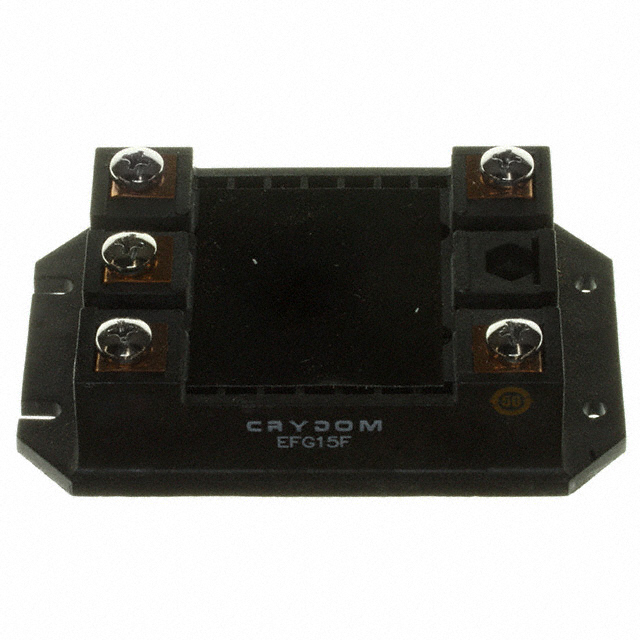

EFG15F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EFG15F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EFG15F
Manufacturer	Crydom
Description	MODULE DIODE 170A 480VAC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5116 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	EFG15F	Manufacturer	Crydom
Description	MODULE DIODE 170A 480VAC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5116 pcs	Data sheet	EF Series Solid State Power Switching Brochure
Category	Discrete Semiconductor Products	Voltage - Peak Reverse (Max)	1.2kV
Voltage - Forward (Vf) (Max) @ If	1.4V @ 100A	Technology	Standard
Supplier Device Package	Module	Series	-
Packaging	Bulk	Package / Case	Module
Other Names	CC1663 EFG15F-ND	Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Single Phase	Detailed Description	Bridge Rectifier Single Phase Standard 1.2kV Chassis Mount Module
Current - Average Rectified (Io)	125A
