Home > Products > Power Supplies - External/Internal (Off-Board) > DC DC Converters > STMGFW304812

STMGFW304812

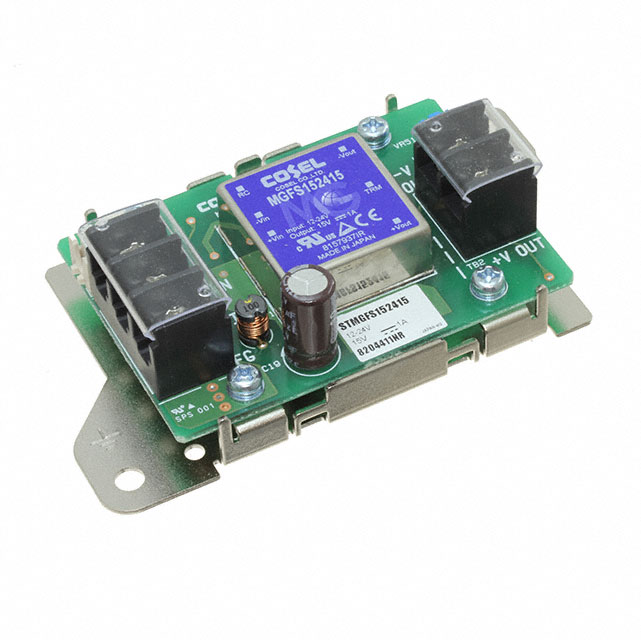

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STMGFW304812 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	STMGFW304812
Manufacturer	Cosel
Description	DC/DC CONVERTER +/-12V 30W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	25 pcs	50 pcs	100 pcs
~~In Stock~~ 1401 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs
	$32.115	$31.86	$31.605
	$29.566	$28.546	$27.119

Product parameter
Data sheet

Product parameter

Part Number	STMGFW304812	Manufacturer	Cosel
Description	DC/DC CONVERTER +/-12V 30W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1401 pcs	Data sheet	STMG Series Instr Manual STMG Series Datasheet
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-12V
Voltage - Output 1	12V	Voltage - Isolation	1.5kV
Voltage - Input (Min)	18V	Voltage - Input (Max)	76V
Type	Open Frame	Size / Dimension	4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm)
Series	STMGFW	Power (Watts)	30W
Other Names	1776-2686 STMGFW304812-ND	Operating Temperature	-20°C ~ 70°C (With Derating)
Number of Outputs	2	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Efficiency	88%
Current - Output (Max)	1.25A, 1.25A	Approvals	CE
Applications	ITE (Commercial)
