MGW302405

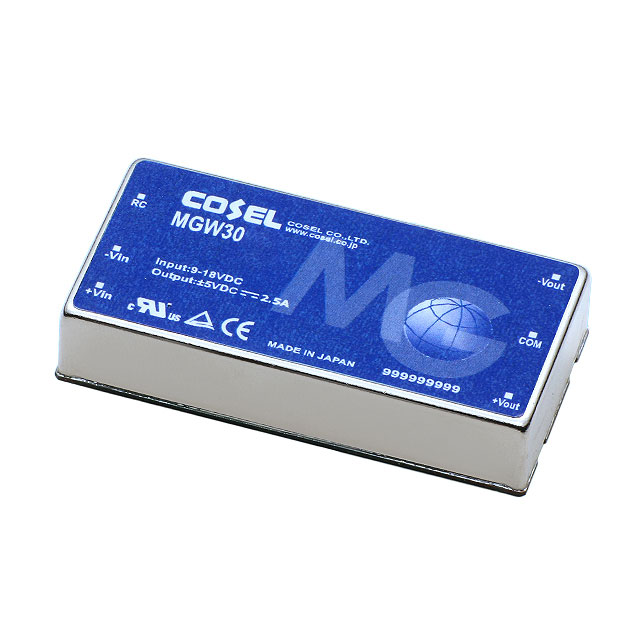

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MGW302405 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MGW302405 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MGW302405 |
|---|---|
| Manufacturer | Cosel |
| Description | DC DC CONVERTER +/-5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $19.532 | $19.379 | $19.226 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $18.616 | $17.70 | $16.48 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MGW302405 | Manufacturer | Cosel |
|---|---|---|---|
| Description | DC DC CONVERTER +/-5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2387 pcs | Data sheet | MGW Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -5V | Voltage - Output 1 | 5V |
| Voltage - Isolation | 1.5kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V | Type | Isolated Module |
| Supplier Device Package | - | Size / Dimension | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) |
| Series | MGW | Packaging | - |
| Package / Case | 6-DIP Module | Other Names | 1776-1400 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OVP | Efficiency | 87% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 5V -5V 2.5A, 2.5A 18V - 36V Input | Current - Output (Max) | 2.5A, 2.5A |
| Applications | ITE (Commercial) |
