MGW100512

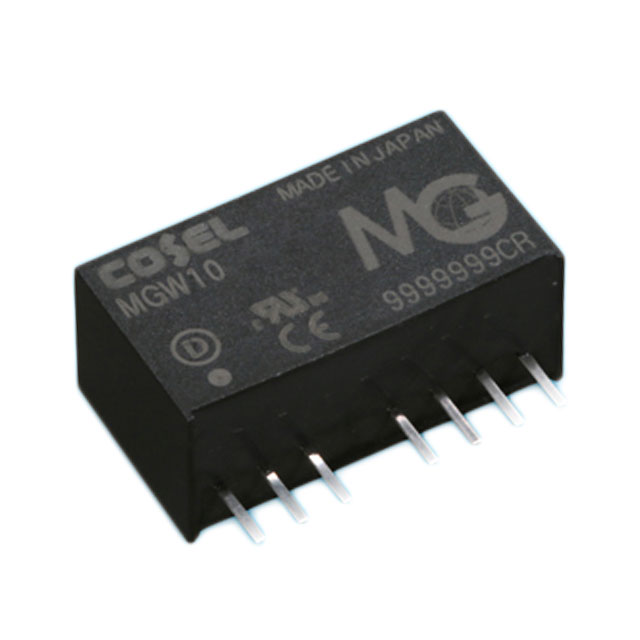

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MGW100512 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MGW100512 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MGW100512 |
|---|---|
| Manufacturer | Cosel |
| Description | DC DC CONVERTER +/-12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $10.181 | $10.101 | $10.023 | $9.867 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.397 | $8.614 | $8.457 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MGW100512 | Manufacturer | Cosel |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3580 pcs | Data sheet | MGW Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -12V | Voltage - Output 1 | 12V |
| Voltage - Isolation | 1.5kV | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V | Type | Isolated Module |
| Supplier Device Package | - | Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Series | MGW | Packaging | - |
| Package / Case | 7-SIP Module | Other Names | 1776-1016 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP | Efficiency | 85% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 420mA, 420mA 4.5V - 9V Input | Current - Output (Max) | 420mA, 420mA |
| Applications | ITE (Commercial) |
