HZA226M080F24VT-F

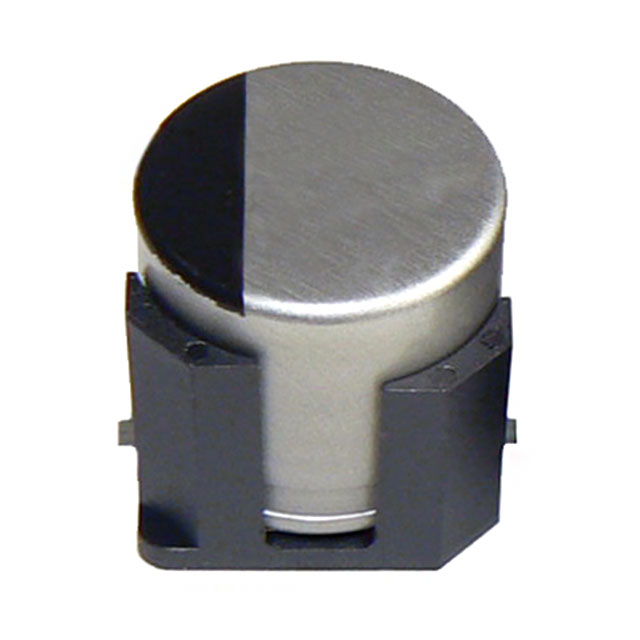

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HZA226M080F24VT-F with confidence from Components-World.HK, 1 Year Warranty
Dowload HZA226M080F24VT-F Details in PDFSee Product Specifications for product details.
Buy HZA226M080F24VT-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HZA226M080F24VT-F |
|---|---|
| Manufacturer | Cornell Dubilier Electronics |
| Description | CAP ALUM POLY HYB 22UF 80V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.258 | $1.015 | $0.792 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HZA226M080F24VT-F | Manufacturer | Cornell Dubilier Electronics |
|---|---|---|---|
| Description | CAP ALUM POLY HYB 22UF 80V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45377 pcs | Data sheet | HZA-V Type Datasheet |
| Category | Capacitors | Voltage - Rated | 80V |
| Type | Hybrid | Tolerance | ±20% |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Series | HZA_V | Ripple Current @ Low Frequency | 155mA @ 220Hz |
| Ripple Current @ High Frequency | 1.55A @ 100kHz | Ratings | AEC-Q200 |
| Packaging | Cut Tape (CT) | Package / Case | Radial, Can - SMD |
| Other Names | 338-4241-1 | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.413" (10.50mm) | ESR (Equivalent Series Resistance) | 45 mOhm |
| Detailed Description | 22µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 45 mOhm 10000 Hrs @ 105°C | Capacitance | 22µF |
| Applications | Automotive, Bypass, Decoupling |
