AVES226M06B12T-F

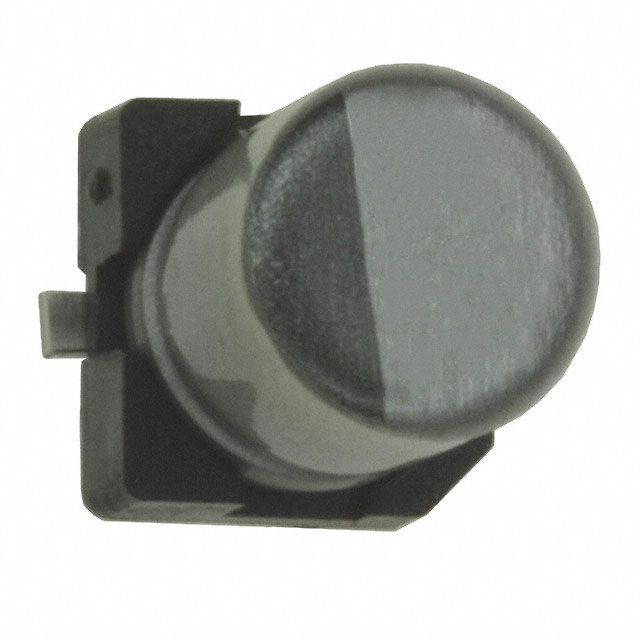

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVES226M06B12T-F with confidence from Components-World.HK, 1 Year Warranty
Dowload AVES226M06B12T-F Details in PDFSee Product Specifications for product details.
Buy AVES226M06B12T-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVES226M06B12T-F |
|---|---|
| Manufacturer | Cornell Dubilier Electronics |
| Description | CAP ALUM 22UF 20% 6.3V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.034 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVES226M06B12T-F | Manufacturer | Cornell Dubilier Electronics |
|---|---|---|---|
| Description | CAP ALUM 22UF 20% 6.3V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 700504 pcs | Data sheet | AVES Type |
| Category | Capacitors | Voltage - Rated | 6.3V |
| Tolerance | ±20% | Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | Series | AVES |
| Ripple Current @ Low Frequency | 21mA @ 120Hz | Ripple Current @ High Frequency | 26.25mA @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.217" (5.50mm) |
| ESR (Equivalent Series Resistance) | 22.6 Ohm @ 120Hz | Detailed Description | 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 22.6 Ohm @ 120Hz 1000 Hrs @ 105°C |
| Capacitance | 22µF | Applications | General Purpose |
