AVE226M2AG24T-F

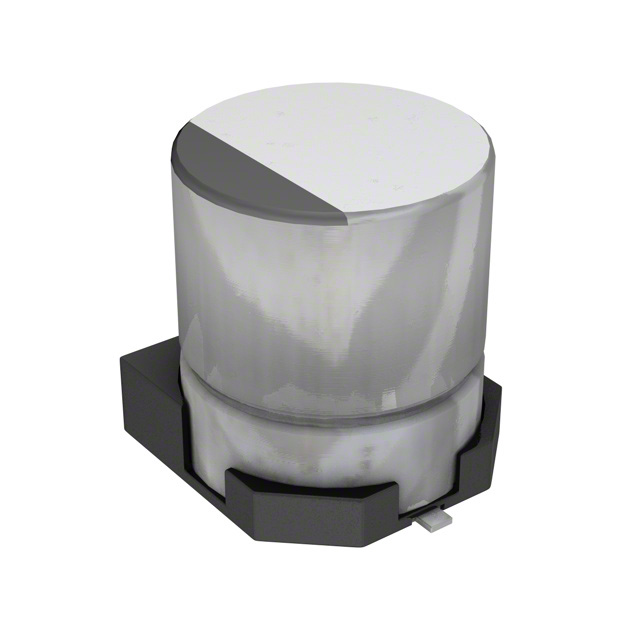

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVE226M2AG24T-F with confidence from Components-World.HK, 1 Year Warranty
Dowload AVE226M2AG24T-F Details in PDFSee Product Specifications for product details.
Buy AVE226M2AG24T-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVE226M2AG24T-F |
|---|---|
| Manufacturer | Cornell Dubilier Electronics |
| Description | CAP ALUM 22UF 20% 100V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.084 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVE226M2AG24T-F | Manufacturer | Cornell Dubilier Electronics |
|---|---|---|---|
| Description | CAP ALUM 22UF 20% 100V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 275859 pcs | Data sheet | AVE Series |
| Category | Capacitors | Voltage - Rated | 100V |
| Tolerance | ±20% | Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | Series | AVE |
| Ripple Current @ Low Frequency | 189mA @ 120Hz | Ripple Current @ High Frequency | 283.5mA @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.413" (10.50mm) |
| ESR (Equivalent Series Resistance) | 7.54 Ohm @ 120Hz | Detailed Description | 22µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 7.54 Ohm @ 120Hz 2000 Hrs @ 85°C |
| Capacitance | 22µF | Applications | General Purpose |
