Home > Products > Capacitors > Aluminum Electrolytic Capacitors > AEB686M2DU44B-F

AEB686M2DU44B-F

AEB686M2DU44B-F

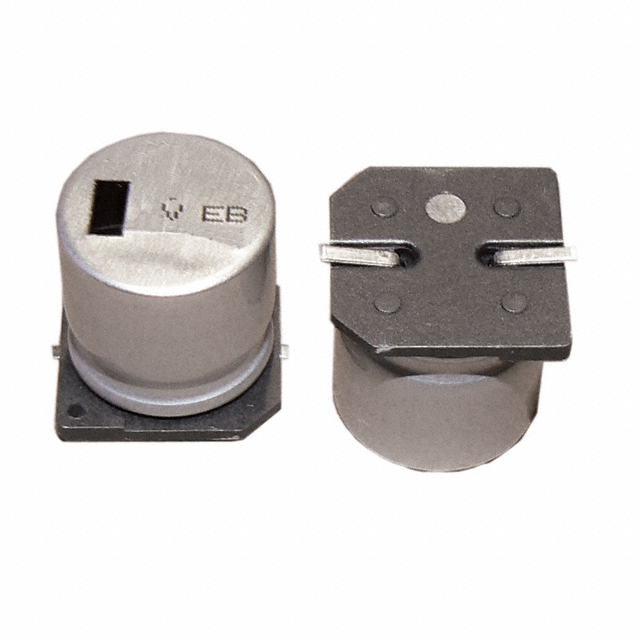

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AEB686M2DU44B-F with confidence from Components-World.HK, 1 Year Warranty

Dowload AEB686M2DU44B-F Details in PDF

Request a Quote

Part Number	AEB686M2DU44B-F
Manufacturer	Cornell Dubilier Electronics
Description	CAP ALUM 68UF 20% 200V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 47219 pcs
Reference Price (In US Dollars)	150 pcs
Reference Price (In US Dollars)	$0.686

Product parameter
Data sheet

Product parameter

Part Number	AEB686M2DU44B-F	Manufacturer	Cornell Dubilier Electronics
Description	CAP ALUM 68UF 20% 200V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47219 pcs	Data sheet	AEB Type
Category	Capacitors	Voltage - Rated	200V
Tolerance	±20%	Surface Mount Land Size	0.669" L x 0.669" W (17.00mm x 17.00mm)
Size / Dimension	0.630" Dia (16.00mm)	Series	AEB
Ripple Current @ Low Frequency	412.5mA @ 120Hz	Ripple Current @ High Frequency	750mA @ 100kHz
Ratings	-	Polarization	Polar
Packaging	Bulk	Package / Case	Radial, Can - SMD
Operating Temperature	-25°C ~ 105°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lifetime @ Temp.	5000 Hrs @ 105°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance	550 mOhms	Height - Seated (Max)	0.846" (21.50mm)
ESR (Equivalent Series Resistance)	-	Detailed Description	68µF 200V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Capacitance	68µF	Applications	General Purpose
