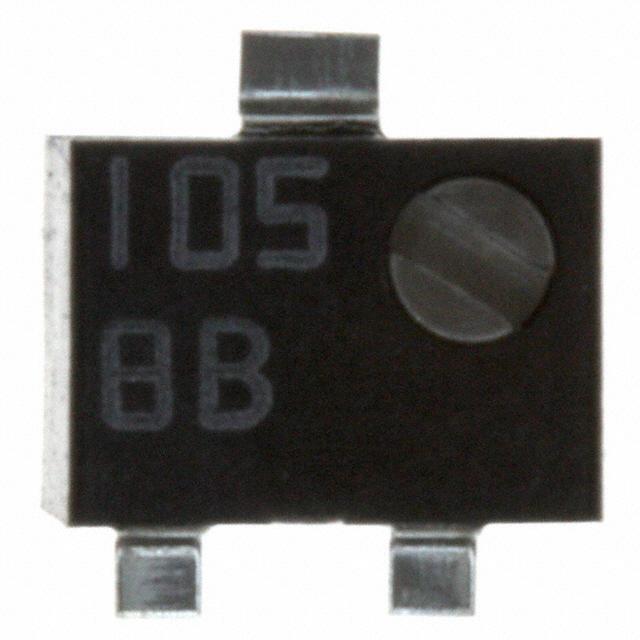

SM-42TX105
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM-42TX105 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM-42TX105 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM-42TX105 |
|---|---|
| Manufacturer | Copal Electronics |
| Description | TRIMMER 1M OHM 0.25W GW TOP ADJ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $0.814 | $0.673 | $0.655 | |||
| 1250 pcs | 2500 pcs | 6250 pcs | |||
| $0.637 | $0.549 | $0.531 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM-42TX105 | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | TRIMMER 1M OHM 0.25W GW TOP ADJ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56903 pcs | Data sheet | SM-42 & 43 Series Datasheet |
| Category | Potentiometers, Variable Resistors | Tolerance | ±10% |
| Termination Style | Gull Wing | Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | Square - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm) | Series | SM42 |
| Resistive Material | Cermet | Resistance | 1 MOhms |
| Power (Watts) | 0.25W, 1/4W | Packaging | Tape & Reel (TR) |
| Other Names | SM-42TX 1M OHM (105) SM-42TX105TR SM42TX105 |
Number of Turns | 11 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 MOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 11 Turn Top Adjustment | Adjustment Type | Top Adjustment |
