SM-42TA504

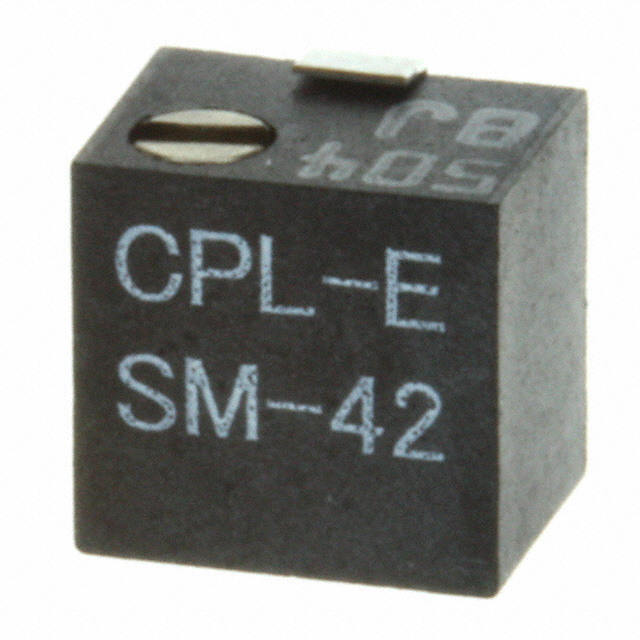

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM-42TA504 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM-42TA504 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM-42TA504 |
|---|---|
| Manufacturer | Copal Electronics |
| Description | TRIMMER 500K OHM 0.25W J LEAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.78 | $0.672 | $0.629 | $0.607 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM-42TA504 | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | TRIMMER 500K OHM 0.25W J LEAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52866 pcs | Data sheet | SM-42 & 43 Series Datasheet |
| Category | Potentiometers, Variable Resistors | Tolerance | ±10% |
| Termination Style | J Lead | Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | Square - 0.189" L x 0.181" W x 0.146" H (4.80mm x 4.60mm x 3.70mm) | Series | SM42 |
| Resistive Material | Cermet | Resistance | 500 kOhms |
| Power (Watts) | 0.25W, 1/4W | Packaging | Tape & Reel (TR) |
| Other Names | SM-42TA 500K OHM (504) SM-42TA504TR SM42TA504 |
Number of Turns | 11 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 500 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11 Turn Side Adjustment | Adjustment Type | Side Adjustment |
