SH-7010TB

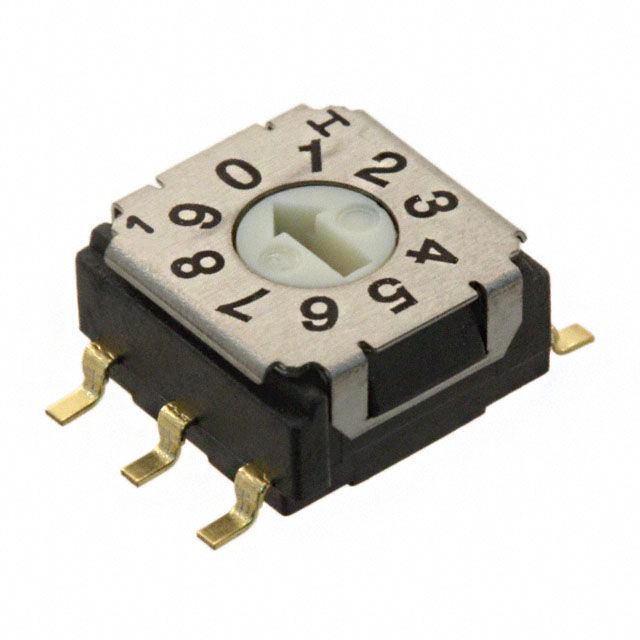

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH-7010TB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH-7010TB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH-7010TB |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SWITCH ROTARY DIP BCD 100MA 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.928 | $0.90 | $0.854 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.798 | $0.78 | $0.668 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH-7010TB | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH ROTARY DIP BCD 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55195 pcs | Data sheet | SH-7000 Series |
| Category | Switches | Washable | Yes |
| Voltage Rating | 5VDC | Termination Style | Gull Wing |
| Series | SH-7000 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Cut Tape (CT) | Other Names | 563-1209-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | - | Manufacturer Standard Lead Time | 11 Weeks |
| Length | 0.287" (7.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.148" (3.75mm) | Features | - |
| Electrical Life | 10,000 Steps | Detailed Description | Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | BCD |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
