Home > Products > Switches > Pushbutton Switches > LP2W-16S-229-Z

LP2W-16S-229-Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LP2W-16S-229-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LP2W-16S-229-Z
Manufacturer	Copal Electronics
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7712 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$4.051

Product parameter
Data sheet

Product parameter

Part Number	LP2W-16S-229-Z	Manufacturer	Copal Electronics
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7712 pcs	Data sheet	LP Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	LP	Panel Cutout Dimensions	Rectangular - 19.20mm x 16.20mm
Packaging	Tube	Other Names	563-1527-5
Operating Temperature	-15°C ~ 60°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2 VDC
Illumination Type, Color	LED, Red	Features	-
Electrical Life	30,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Red
Circuit	SPDT	Actuator Type	Rectangular, Button

Related products
Related news

Related products

LP2W-16S-W-Z Image

Part#:~~LP2W-16S-W-Z~~
Manufacturers:~~Copal Electronics~~
Description:~~SWITCH PUSHBUTTON SPDT 3A 125V~~
In Stock:~~19153~~

~~$1.63/pcs~~RFQ

LP2W-17S-209-Z Image

Part#:~~LP2W-17S-209-Z~~
Manufacturers:~~Copal Electronics~~
Description:~~SWITCH PUSHBUTTON SPDT 3A 125V~~
In Stock:~~11176~~

~~$2.927/pcs~~RFQ

LP2S2WHTBLU-N Image

Part#:~~LP2S2WHTBLU-N~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH PUSH SPST-NO 1MA 20V~~
In Stock:~~36370~~

~~$1.043/pcs~~RFQ

LP2S2BLKN-N Image

Part#:~~LP2S2BLKN-N~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH PUSH SPST-NO 1MA 20V~~
In Stock:~~42163~~

~~$0.882/pcs~~RFQ

LP2W-16S-209-Z Image

Part#:~~LP2W-16S-209-Z~~
Manufacturers:~~Copal Electronics~~
Description:~~SWITCH PUSHBUTTON SPDT 3A 125V~~
In Stock:~~13266~~

~~$2.808/pcs~~RFQ

Part#:~~LP2S2WHTYEL-N~~
Manufacturers:~~E-Switch~~
Description:~~SWITCH PUSH SPST-NO 1MA 20V~~
In Stock:~~40523~~

~~$0.962/pcs~~RFQ

LP2W-16S-889-Z Image

Part#:~~LP2W-16S-889-Z~~
Manufacturers:~~Copal Electronics~~
Description:~~SWITCH PUSHBUTTON SPDT 3A 125V~~
In Stock:~~14786~~

~~$2.601/pcs~~RFQ

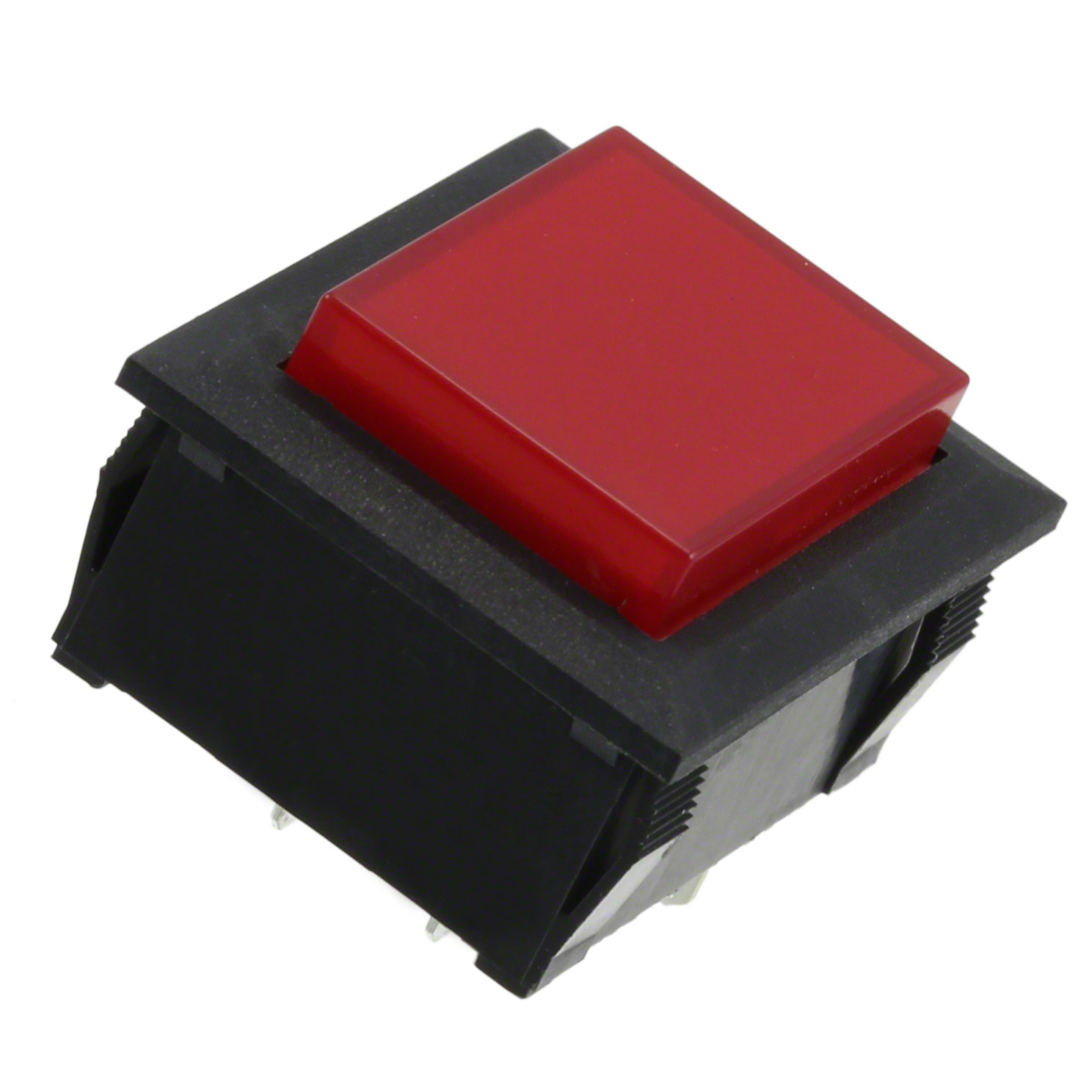

LP2W-17S-229-Z Image
