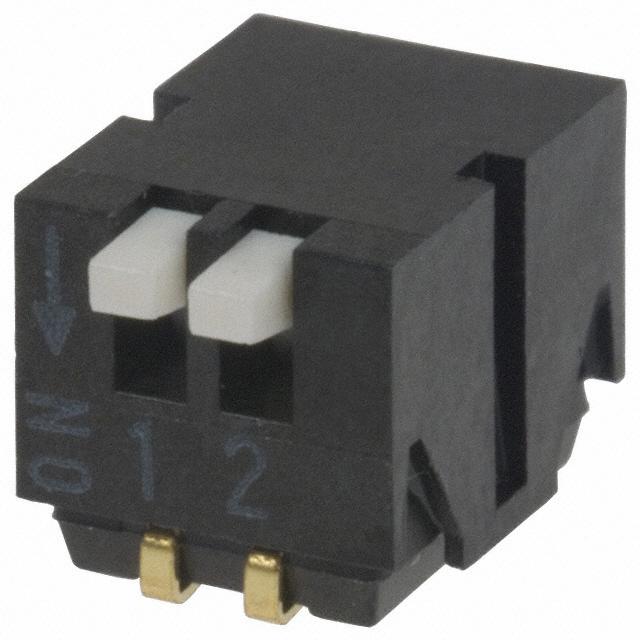

CHP-020A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHP-020A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHP-020A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHP-020A |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SWITCH PIANO DIP SPST 100MA 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | 300 pcs | 500 pcs | 1000 pcs | 5000 pcs |
|---|---|---|---|---|---|
| $0.604 | $0.517 | $0.503 | $0.431 | $0.395 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CHP-020A | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH PIANO DIP SPST 100MA 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80512 pcs | Data sheet | CHP Series Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 6VDC | Termination Style | J Lead |
| Series | CHP | Pitch | 0.050" (1.27mm), Half |
| Packaging | Bulk | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 11 Weeks | Length | 0.181" (4.60mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.181" (4.60mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 100mA 6VDC | Current Rating | 100mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Piano | Actuator Level | Raised |
