Home > Products > Switches > Slide Switches > ASE1D-5M-10-Z

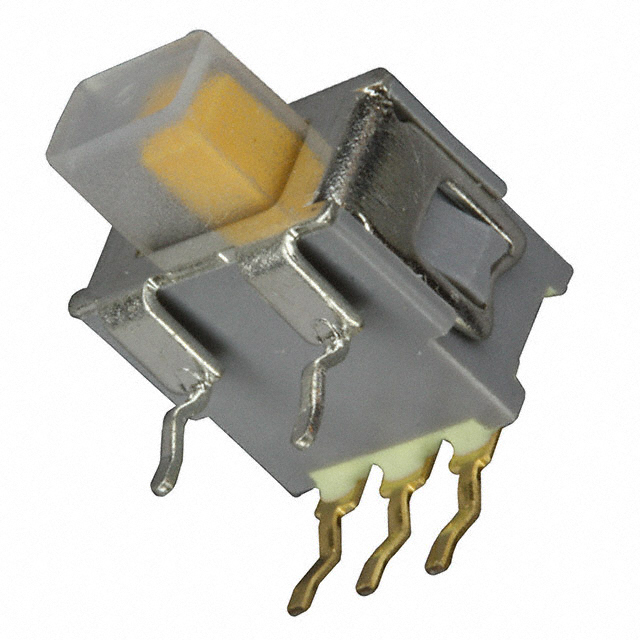

ASE1D-5M-10-Z

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASE1D-5M-10-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ASE1D-5M-10-Z
Manufacturer	Copal Electronics
Description	SWITCH SLIDE SPDT 50MA 60V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 64861 pcs
Reference Price (In US Dollars)	100 pcs	300 pcs	500 pcs	1000 pcs	5000 pcs
Reference Price (In US Dollars)	$0.774	$0.755	$0.635	$0.596	$0.546

Product parameter
Data sheet

Product parameter

Part Number	ASE1D-5M-10-Z	Manufacturer	Copal Electronics
Description	SWITCH SLIDE SPDT 50MA 60V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64861 pcs	Data sheet	ASE Series
Category	Switches	Voltage Rating - DC	60V
Voltage Rating - AC	60V	Termination Style	PC Pin
Switch Travel	2.20mm	Switch Function	On-On
Series	ASE	Packaging	Bulk
Other Names	563-1152	Operating Temperature	-20°C ~ 85°C
Operating Force	70 ~ 500gf	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Washable	Electrical Life	10,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole, Right Angle	Current Rating	50mA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	-
Contact Finish	Gold	Circuit	SPDT
Actuator Type	Standard	Actuator Material	-
Actuator Length	2.80mm
