8GA2022-Z

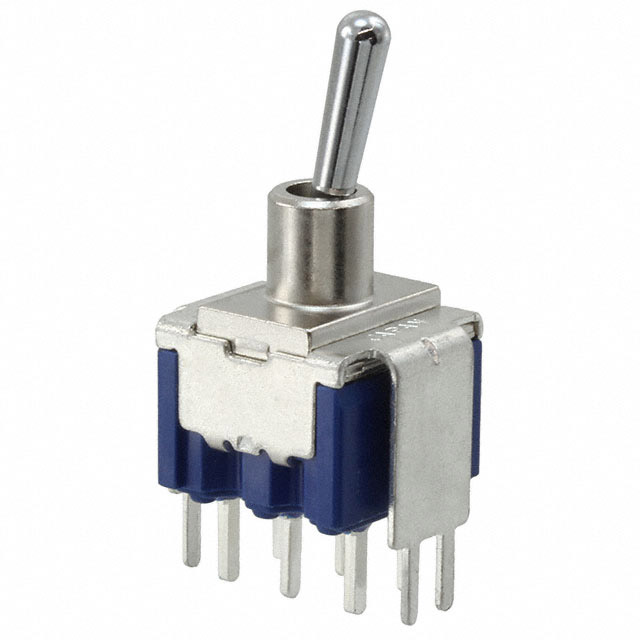

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8GA2022-Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8GA2022-Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8GA2022-Z |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SWITCH TOGGLE DPDT 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.05 | $1.95 | $1.902 | $1.853 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.804 | $1.658 | $1.463 | $1.317 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8GA2022-Z | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH TOGGLE DPDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23097 pcs | Data sheet | 8G Series |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Off-On | Series | 8GA |
| Panel Cutout Dimensions | - | Packaging | Bulk |
| Other Names | 563-1731 | Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | Washable | Electrical Life | 50,000 Cycles |
| Detailed Description | Toggle Switch DPDT Through Hole | Current Rating | 6A (AC), 4A (DC) |
| Circuit | DPDT | Bushing Thread | Unthreaded |
| Actuator Type | Standard Round | Actuator Material | - |
| Actuator Length | 10.50mm |
