Home > Products > Switches > Toggle Switches > 8A2102-Z

8A2102-Z

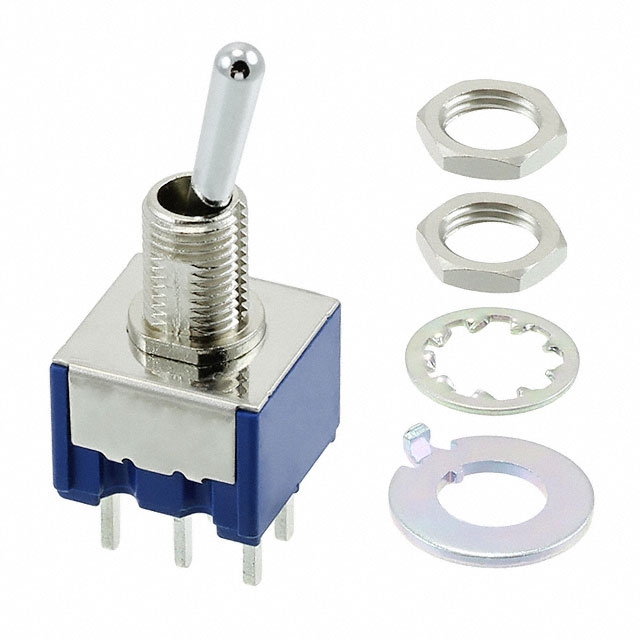

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8A2102-Z with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	8A2102-Z
Manufacturer	Copal Electronics
Description	SWITCH TOGGLE SP3T 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 16662 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.872	$2.798	$2.722	$2.571
	$2.495	$2.419	$2.041	$1.966

Product parameter
Data sheet

Product parameter

Part Number	8A2102-Z	Manufacturer	Copal Electronics
Description	SWITCH TOGGLE SP3T 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16662 pcs	Data sheet	8A Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Function	On-On-On	Series	8A
Panel Cutout Dimensions	Circular - 6.50mm Dia	Packaging	Bulk
Other Names	563-1646	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SP3T Panel Mount	Current Rating	6A (AC), 4A (DC)
Circuit	SP3T	Bushing Thread	1/4-40
Actuator Type	Standard Round	Actuator Material	-
Actuator Length	10.50mm
