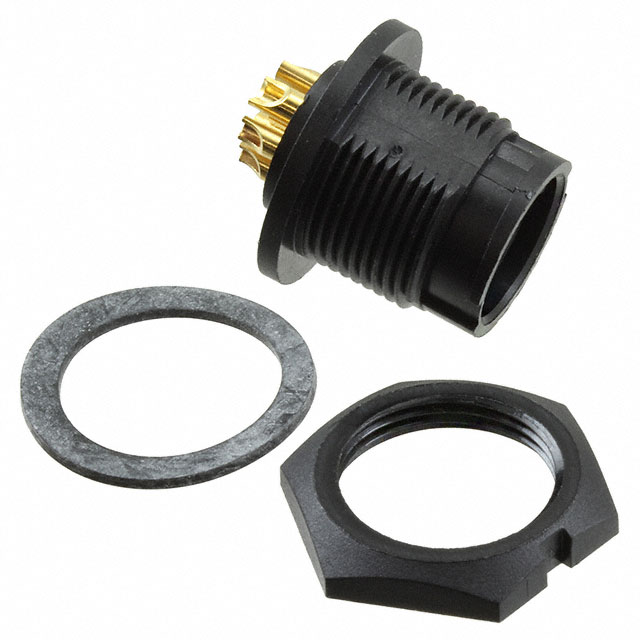

W7C82-6SG-300
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W7C82-6SG-300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W7C82-6SG-300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W7C82-6SG-300 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT FMALE 6POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.032 | $3.665 | $3.573 | $3.298 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.115 | $2.84 | $2.803 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W7C82-6SG-300 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT FMALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12789 pcs | Data sheet | Mini-Con-X®Signal/Power Bulletin~W7C8x-6SG-3xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Mini-Con-X® | Packaging | Bulk |
| Other Names | SC2340 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 6 (4 + 2 Power) |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | UV Resistant | Fastening Type | Bayonet Lock |
| Detailed Description | 6 (4 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 4A, 10A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Automotive, Communication Systems, Instrumentation |
