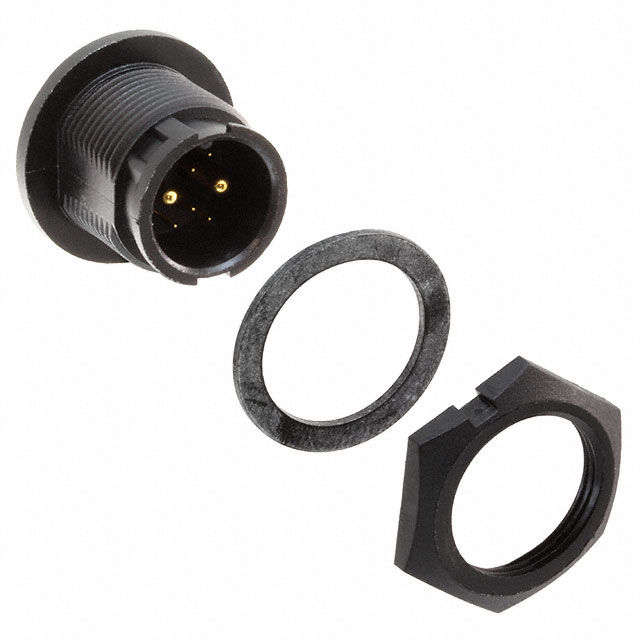

W7A82-8PG-300
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W7A82-8PG-300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W7A82-8PG-300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W7A82-8PG-300 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.866 | $3.514 | $3.427 | $3.163 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.987 | $2.724 | $2.687 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W7A82-8PG-300 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13252 pcs | Data sheet | Mini-Con-X®Signal/Power Bulletin~W7A8x-8PG-3xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Mini-Con-X® | Packaging | Bulk |
| Other Names | SC2347 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 8 (6 + 2 Power) |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | UV Resistant |
| Fastening Type | Bayonet Lock | Detailed Description | 8 (6 + 2 Power) Position Circular Connector Receptacle, Male Pins Solder Cup Gold |
| Current Rating | 2A, 10A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Automotive, Communication Systems, Instrumentation |
