W6C82-6SG-528

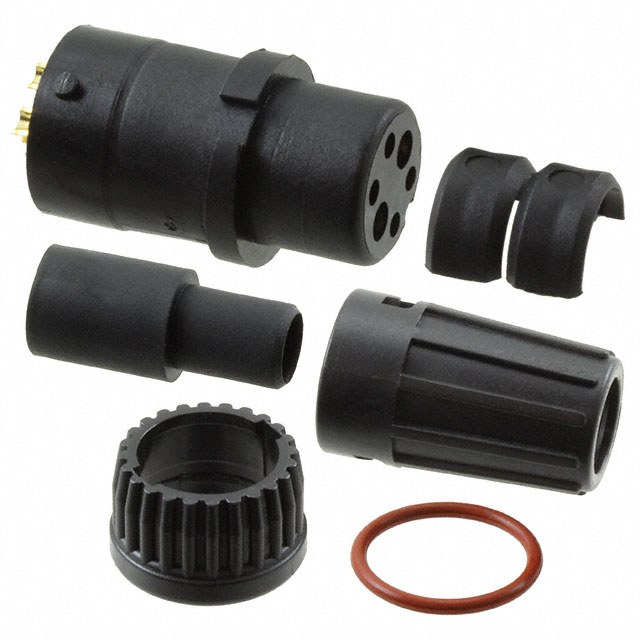

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W6C82-6SG-528 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W6C82-6SG-528 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W6C82-6SG-528 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE 6POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.461 | $4.054 | $3.953 | $3.649 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.446 | $3.142 | $3.10 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W6C82-6SG-528 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 6POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12603 pcs | Data sheet | Mini-Con-X®Signal/Power Bulletin~W6C8x-6PG-5xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Mini-Con-X® | Packaging | Bulk |
| Other Names | SC2336 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 6 (4 + 2 Power) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut, UV Resistant | Fastening Type | Bayonet Lock |
| Detailed Description | 6 (4 + 2 Power) Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 4A, 10A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 0.260" ~ 0.285" (6.60mm ~ 7.24mm) |
| Backshell Material, Plating | Thermoplastic | Applications | Automotive, Communication Systems, Instrumentation |
