UHDBNC05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UHDBNC05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UHDBNC05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UHDBNC05 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | UHD BNC FOR 1505A CABLE |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.251 | $1.201 | $1.101 | $1.051 | $1.001 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.876 | $0.851 | $0.726 | $0.676 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | UHDBNC05 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | UHD BNC FOR 1505A CABLE | Lead Free Status / RoHS Status | |
| Quantity Available | 50600 pcs | Data sheet | UHDBNC05 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | SC3544 | Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | - | Insertion Loss | - |

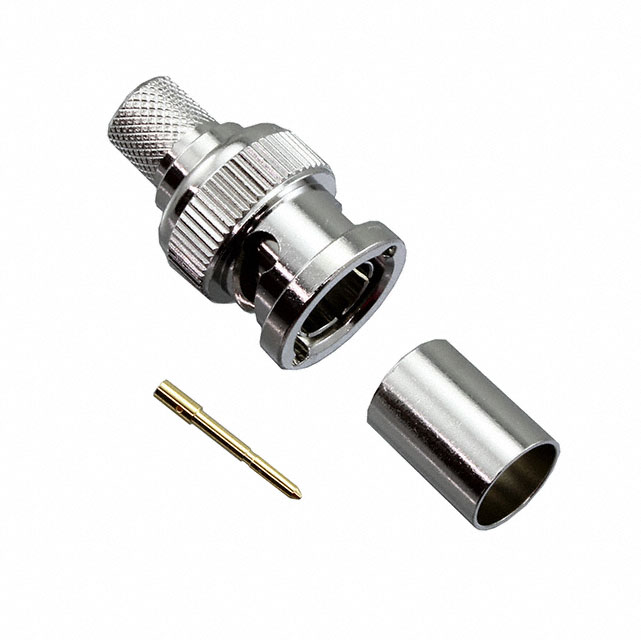

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | - | Housing Color | Silver |
| Frequency - Max | 24GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | - |
| Detailed Description | BNC, UHD Connector Plug, Male Pin Free Hanging (In-Line) Crimp | Contact Termination | Crimp |
| Connector Type | Plug, Male Pin | Connector Style | BNC, UHD |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | Belden 1505A | Body Material | Brass |
| Body Finish | Nickel |
