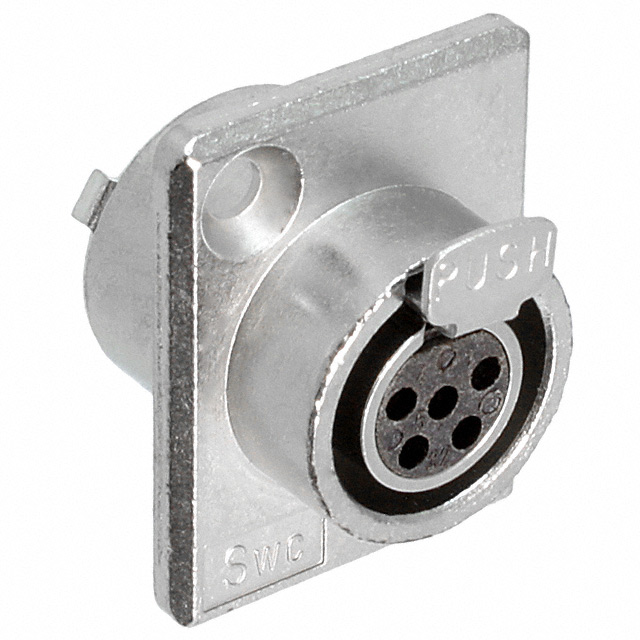

TY5F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TY5F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TY5F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TY5F |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FM MINI XLR 5P SDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.29 | $4.136 | $3.711 | $3.682 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TY5F | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FM MINI XLR 5P SDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10222 pcs | Data sheet | TYxF Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | Mini XLR |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | TINI Q-G® TY | Packaging | Bulk |
| Other Names | SC2006 TY5F-ND |
Orientation | Keyed |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | - | Features | Ground |
| Fastening Type | Latch Lock | Detailed Description | 5 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 4A | Contact Material | Beryllium Copper |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Audio |
